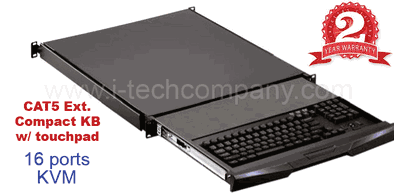

Rackmount Keyboard Drawer w/ Cat5 Extender PS/2 16-port KVM 2 consoles, Compact Keyboard w/ touchpad: Model NK-1602t

Rackmount Keyboard Drawer w/ Cat5 Extender PS/2 16-port KVM 2 consoles, Compact Keyboard w/ touchpad: Model NK-1602t
  • Front View
  • Side View
  • Side View
  • Trackball
  • Package Box
  • Accessories

Rackmount Keyboard Drawer w/ Cat5 Extender PS/2 16-port KVM 2 consoles, Compact Keyboard w/ touchpad: Model NK-1602t

NK-1602t
  • Overview
  • Specifications
  • Download

Keyboard Drawer Benefits:
  • Cost effective Combo KVM integration
  • Mix PS/2, USB & SUN with Multi-Platform switch capability
  • Secure remote user access across the world wide web
  • 104-key keyboard with either touchpad or trackball
  • Enhanced aesthetics with molded front handle and two point lock
  • Combo interface either PS/2 or USB for keyboard drawer

Keyboard Mouse Cable
KC-3
6 feet Combo keyboard mouse cable (bundle)
- VGA + USB or PS/2, server end
- DB15 (VGA, USB KB & MS), console port

Designed for:



Keyboard Selection:

Supporting layouts






Dimensions ( Single console / with KVM )
Product: 441.6 x 550 x 44 mm / 17.4 x 21.7 x 1.73 inch
Packing: 580 x 749 x 100 mm / 22.8 x 29.5 x 3.9 inch
Weight ( Net / Gross )
Console: 10.4 kgs ( 22.9 lbs ) / 13.1 kgs ( 28.8 lbs )
KVM: 11.4 kgs ( 25.1 lbs ) / 14.1 kgs ( 31 lbs )
Casing Color: Black ( RAL 9005 )

KVM Selections :
(x) stands for e or b keyboard.
Combo CAT6 KVM
Local
Remote
8-port
16-port
32-port
1
0
1
NK - CIP8x
NK - CIP16x
NK - CIP32x
1
1
0
NK - CCE8x
NK - CCE16x
NK - CCE32x
1
0
0
NK - C8x
NK - C16x
NK - C32x
Cat6 KVM Dongle : IF-DUSB ( VGA-USB ) / IF-DPS2 ( VGA-PS/2 ) / IF-DUSBD ( DVI-USB )

Combo DB-15 KVM
Local
Remote
8-port
16-port
32-port
1
0
1
NKIP - 82x
NKIP - 162x
-
1
1
0
NK - CE8x
NK - CE16x
-
1
0
0
NK - S801x
NK - S1601x
-
Combo DB-15 KVM Cable : NE-6 / 10 / 15 (6, 10 or 15 ft)

PS2 DB-15 KVM
Local
Remote
8-port
1
0
0
NK - 801x
PS/2 DB-15 KVM Cable : ND-6 / 15 (6 or 15 ft)






Top
General
Form factor 1U rack mounting on slide-out rails
Color Black
Compatilbity Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs
Server-side Interface
No KVM  HD15 VGA, 6-pin Mini DIN for PS/2 KB/MS
Integrated PS/2 KVM HD15 VGA, 6-pin Mini DIN for PS/2 KB/MS
Integrated USB KVM  HD15 VGA, USB Type A for KB/MS
Options KVM with IP remote or CAT. 5 Remote
Rack Mouting Adjustable ranges from 15.3" to 31.3" (390 to 795mm)
Input Device
e model notebook type keyboard with 2-button touchpad
b model notebook type keyboard with 3-button mini trackball
c model Cherry PS/2 keyboard with 2-button trackball
d model compact keyboard with 17-key numeric keypad & 3-button trackball
t model compact keyboard with 17-key numeric keypad & 2-button touchpad
Integrated KVM Switch Option
KVM Port 8 or 16-port, HD15 female
Port Acess  Channel button or hot keys selectable
Indicators Online (green) and selected (red) status LED
Cascade Expansion Up to 128 ports/servers
PS/2 Type Interface
IP Remote  TCP/IP access from anywhere around the world (with IP KVM)
CAT. 5 Remote 500 feet remote access by CAT. 5 cable (with 2-console KVM)
KB/MS Emulation PS/2, with microprocessor support hot-plugging
Server-side Interface VGA HD15, analog RGB and 2 x 6-pin mini DIN
Support Platfrom MS Windows 3.x/95/98/2000/XP/NT4.0, Solaris, Novel, SCO Unix and MS DOS
KVM Cable "CD" series PS/2 cable with 6, 10, 15 & 33 feet option
Cascade Cable "CA" series cable to PS/2 KVM switch with 2, 6 feet option
USB Type Interface
CAT. 5 Remote 1,000 feet remote access by CAT. 5 cable (with 2-console KVM)
KB/MS Emulation USB 1.1 Compliant, support hot-plugging
Server-side Interface VGA HD15, analog RGB, USB type A, support hot-plugging
Support Platfrom MS Windows 2000/XP, Solaris and SCO Unix
KVM Cable  "CB" series USB KVM cable with 6, 10, 15 feet option
Cascade Cable "CBC " series cascade cable to USB KVM switch
Power
Integrated KVM 110 or 220 VAC at 50 or 60 Hz via AC adapter (12V, 6A)
EMC Approved FCC , CE and VCCI
Integrated KVM 8 or 16 KVM ports, HD15 female VGA port, HD15 female IP console port, RJ45 type (IP KVM model) Remote console port, RJ45 type (2-console model) Serial port, DB9 (IP KVM model) Virtual Device port, USB type B (IP KVM model) PS/2 cascade port, 2 Mini DIN & HD15 female USB cascade port, HD15 female DC power input, Plug-round type
Without KVM Conosle port, HD15 female DC power input, Plug-round type
Enviromental
Temperature 0 to 50 Degree Celsius (Operation); -25 to 65 Degree Celsius (Storage)
Relative Humidity 90%, non condensing
Shock 50G peak acceleration  (11ms, half since wave)
Vibration 58~500Hz/ 0.98G (11min/ cycle)
Mechanical
Weight  44.2 x 55 x 4.45 cm / 17.4 x 21.6 x 1.75 inch (WxDxH)
Temperature Approximate 8 kg
Package Information
Carton Box 60 x 71 x 18 cm / 23.6 x 27.9 x 7.1 inch (WxDxH)
Weight Approximate 12 kg
