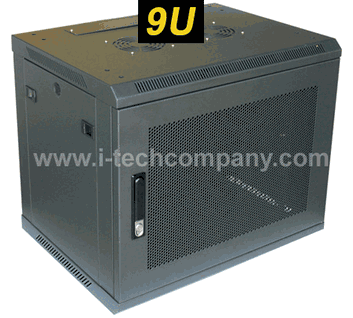

9U 450mm Depth Wallmount 19" Cabinet (Model: KW1809)

9U 450mm Depth Wallmount 19" Cabinet (Model: KW1809)

9U 450mm Depth Wallmount 19" Cabinet (Model: KW1809)

KW1809
  • Overview
Product Discontinued. Call Us at 888-483-2418 for Replace items.

Features:

  • 9U 450mm Depth Wallmount 19" Cabinet;
  • Firm and reliable;
  • Excellent Air Ventilation Design with Two Optional AC 120mm Cooling Fans;
  • Three Ways, Top, Bottom, and Rear Cabling Tunnels;
  • Wallmount or Desktop Standalone;
  • Meet IP20 Protection Grade;
  • Instead of easy broken glass door, this one come with high density vented arc hole steel door;
  • Removable Side Panels with Easy Handy Latches;
  • Degreasing, Acidification, Phosphoric, Static Electricity or Powder Coat Surface Finish;

Specification
Rack Units: 9U
Security: Front Lock
Industry Standard: Accord with ANSI/EIARS-310-D, IEC297-2, DIN41491, DIN41494, PART7GB/T3047.2-92
Thickness: 2.0mm SPCC High-Quality Cold Roll Steel Post; 1.2mm for Enclosure
Materials: SPCC high-quality cold roll steel
Cooling Fan: Two optional 120mm AC cooling fans
Door: High density vented arc hole steel front door
Loading Capacity: 132 lbs / 60 kg.
Dimensions ( W x D x H ): 23.5" x 17.7" x 19.6"
Weight: 49 lb (NET) 54 lb (GROSS)
