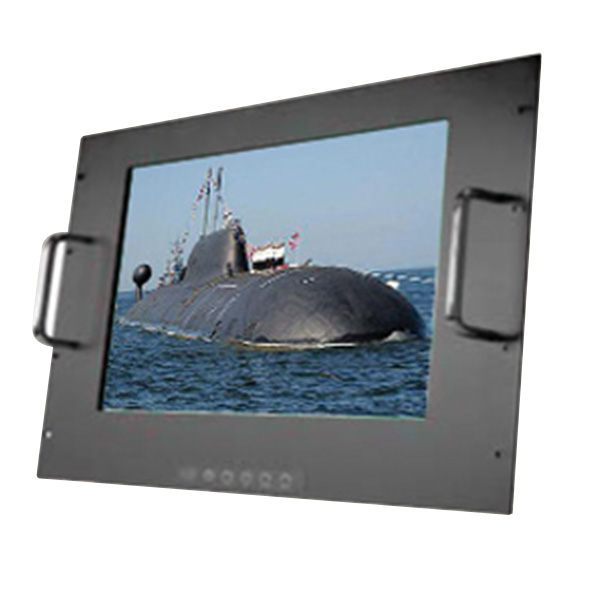

19" LCD Monitor VGA Input, Front OSD and Handle, 90-125VDC Input(Built-in) w/ Terminal Block Steel enclosure (MODEL: ERMW1900-125VDC)

19" LCD Monitor,1440 x 900, 300 nits VGA Input, Front OSD and Handle, VESA Mounting & Built in Power Supply 90-125VDC Input(Built-in) with Terminal Block Steel enclosure with black powder coating (MODEL: ERMW1900-125VDC)

Modularize mechanical design provides flexible product configuration and easy maintenance
Optional ultra high brightness panel
VGA connector with optional AV.SV.AV-Looping
Available with auto-brightness sensor offers application in day and night
Optional build-in touch screen for interactive application
Complete custom design/solution for OEM customers

Panel	Cell Type / Glass Surface	TFT LCD / Black Anti-Glare, low reflection coating
	Aspect Ratio / Size	Wide /19" viewable diagonal area
	Active Area / Pixel Pitch	408.24(H) x 255.15(V) mm / 0.284(H) x 0.284(V) mm
	Native Resolution / Colors	1440(H) x900(V) / 16.7 Million
	Brightness / Contrast	300 cd/m2 (typ) / 1000 :1
	Response Time	^ 5 ms
	Viewing Angle (typical)	H. 170° (- 85° ~ + 85°) , V. 160°(- 80° ~ + 80°)
	Light Source	CCFL , Long life, 50,000 hrs (typ)
Input Sources	PC System	Signal	Analog RGB (0.7/1.0 Vp.p, 75 ohms)
		Sync	Separate Sync, Composite Sync, Sync On Green
		Frequency	Fh: 30 - 82Khz , Fv: 50 -75Hz
	Audio System	2W Speaker x 2
Input Terminals	1 x VGA (15 Pin Female D-Sub), 1 x PC Audio (Stereo Headphone Jack), 1 x DC Power Plug
Convenient Features	Auto Calibration , Back Light Adjustment, Plug&Play (VESA DDC/CI, DDC 2B)
	OSD Multi-Languages , Wall Mount Ready (VESA 100 x 100 mm)
Power	Internal power supply with universal / Auto-Sensing, AC 90 to125VDC, 50 / 60 Hz
Power Consumption	Operation / Power Saving	30 watt, < 2 watt (Support DPMS)
Operating Condition	Temperature / Humidity	0°C ~ 50°C (32°F ~ 122°F), 10% ~ 90% (no condensation)
Storage Condition	Temperature / Humidity	- 20°C ~ 60°C (- 4°F ~ 140°F), 10% ~ 90% (no condensation)
Certification		FCC,CE
Dimensions	Physical	W x H x D = 583.0 x 399.0 x 68.0 mm
	Carton	Wx H x D = TBD
Weight	N.W. / G.W.	7.5 Kgs / 8.5 Kgs
Container Loaded	20ft / 40ft / 40ft HQ	TBD (Sets , By pallet)
