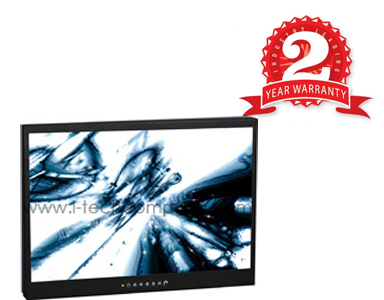

8U 22" Widescreen LCD Display (Model: NPW822)

8U 22" Widescreen LCD Display (Model: NPW822)

NPW822
  • Overview
  • Specifications
  • Download
Product discontinues. Call us at 888-483-2418 or click for Replacement Item.

LCD Display Benefits:
  • 22” widescreen LCD with high resolution 1680 x 1050
  • Ideal for CCTV security & industrial control

Display Features & Options:
  • 8U LCD display with 22” widescreen LCD
  • Quad display option
  • Touchscreen option
  • 12V, 24V and 48V DC power options
  • AV + BNC, Audio and DVI-D options
  • NEMA 4 and IP65 options for front protection

Options:

BNC + S-Video DVI-D DC Power Audio Touchscreen Quad Display IP65

BNC + S-Video Audio

DVI-D Touchscreen - USB

DC Power Touchscreen - Serial

Monitor Grade A Wide 22" industrial TFT LCD panel

Dimensions:
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)

Net
Weight
Gross
Weight
NPW822 Series
500.4 x 59.1 x 353.4 mm
19.7 x 2.3 x 13.9 inch
565 x 539 x 156 mm
22.2 x 21.2 x 6.1 inch
12 kg / 26 lbs
15 kg / 33 lbs
The rackmount width will be increased under NP widescreen series
With Quad Display option, 1U height will be increased on the casing.

Top
Item Description
LCD Manufacturer Samsung
Diagonal Size Wide 22" TFT
Max. Resolution 1680 x 1050
Brightness (cd/m²) 300
Color Support 16.7M
Contrast Ratio (typ.) 1000:1
Viewing Angle (H/V) 160° x 160°
Display Area (mm) 474 x 296
Tr Response Time (ms) 3.6
LCD Panel MTBF (hrs) 50, 000
VGA Signal Input Analog RGB, 0.7Vp-p
Sync. Type Separate H/V, Composite, SOG
Resolution 720 x 400 70 Hz
640 x 480 60/70/72/75 Hz
800 x 600 60/70/72/75 Hz
1024 x 768 60/70/75 Hz
1152 x 864 60/70/75 Hz
1280 x 720 60/70/75 Hz
1280 x 1024 60/70/75 Hz
1680 x 1050, 60 Hz
Plug and Play DDC EDID 1.3
Connector DB-15 connector
Power Input Auto Sensing 100 to 240VAC, 50/60 Hz
Power Consumption Max. 48 watt, Standby 5 watt
Compatibility Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs
