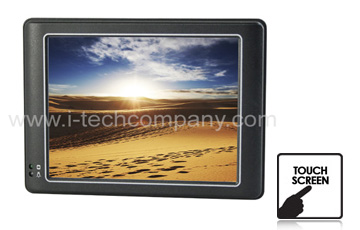

5.7" DMP Vortex86MX+ 933MHz Panel PC Fanless with DC 8-35V Input & Resistive Touchscreen (Model: XPC05701GDC)

5.7" DMP Vortex86MX+ 933MHz Panel PC Fanless and Low Power Consumption w/1GB memory , with DC 8-35V Input, DDR2 / 2USB AUDIO / LAN / COM / CF / microSD, with Resistive Touchscreen

5.7" DMP Vortex86MX+ 933MHz Panel PC Fanless and Low Power Consumption w/1GB memory , with DC 8-35V Input, DDR2 / 2USB AUDIO / LAN / COM / CF / microSD, with Resistive Touchscreen

Inquiry/Quote Request
XPC05701GDC
  • Overview
  • Specifications
  • Download

Features:
  • 5.7" TFT LCD with Resistive Touchscreen
  • DMP Vortex86MX+ 933MHz Onboard
  • 512MB / 1GB Memory Onboard
  • Integrated 10/100Mbps Ethernet
  • RS-232/422/485 Port
  • Compact Flash Type I/II / Micro SD Slot
  • Fanless and Low Power Consumption
  • Metal Chassis with Compact Design
LCD Display         Type VGA TFT LCD
Size 5.7"
Resolution (Pixel) 640x480
Colors 262,144
View Angle Vertical 10 0°, Horizontal 140°
Brightness 400 cd/m2
Backlight life 50,000 hrs
Contrast Ratio 300:1
CPU DMP Vortex86MX+ 933MHz
Cache L1: 16KB I-Cache, 16KB D-Cache
L2: 4-256KB Cache
Memory 512MB / 1GB DDRII onboard
Watchdog Timer Software Programmable from 30.5u to 512 Seconds x 2 Sets
Serial Port RS-232/422/485 x 1
USB Ports USB ports (Ver2.0) x 2
Ethernet Integrated 10/100Mbps Ethernet
Audio HD Audio-Realtek ALC262 CODEC
Internal Drives Compact Flash Type I/II slot, Micro SD slot
Touch Screen Type Analog Resistive
Expansion Slot Wi-Fi optional
Power Requirement +5VDC / +8~+35VDC (DC10~14V with Power Switch)
Power Consumption +5V@1.5A
Operating Temperature 0°C to +50°C (+32°F to +122°F)
Storage Temperature -10°C to +60°C (+14°F to +140°F)
Operating Humidity 0% to 90% Relative Humidity, Non-Condensing
Operating System DOS, Linux, Windows CE, Windows XP
Dimensions 152 x 112 x 33mm (5.98 x 4.41 x 1.3 inches)
Weight 374g
Certificate CE, FCC, VCCI, Vibration
