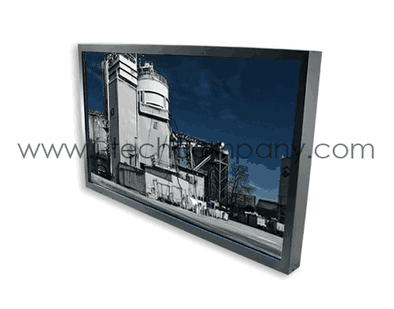

Industrial Metal Housing Display Chassis Mount, 46" LCD monitor, 1920 x 1080, 380 nits,DVI+VGA+AUDIO, CCFL backlight of panel +Flex wall mount. (Model: BCHW4600)

Industrial Metal Housing Display Chassis Mount, 46" LCD monitor, 1920 x 1080, 380 nits,DVI+VGA+AUDIO,  CCFL backlight of panel +Flex wall mount. (Model: BCHW4600)

Industrial Metal Housing Display Chassis Mount, 46" LCD monitor, 1920 x 1080, 380 nits,DVI+VGA+AUDIO, CCFL backlight of panel +Flex wall mount. (Model: BCHW4600)

BCHW4600
  • Overview
  • Download

Features



  1. Metal Chassis Housing with built in speakers
  2. IR Remote Sensor
  3. Auto Power On/Off and Auto Signal On/Off


  1. Perforated rear Cover provide ample ventilation
  2. Recess handle can easily handle and install (42 and above)
  3. VESA Mount for Surface Mount
  4. Additional Cable Management Ring


  1. OSD: Power/Menu/Auto/Left/Right
  2. Main Power On/Off Switch
  3. VGA and DVI Video and Audio Input


  Include low profile wall mount bracket


Display Specifications CCFL PANEL
Active Screen Size 46 (16:9)
Display Area(mm) 1018.08(H) x 572.67(V)
Number of Pixels 1920 x 1080
Contrast Ratio 4000 : 1
Colors 16.7M
Brightness(cd/m 2 ) 320 up to 400
View Angle R/L178 x U/D178
Response Time 6.5 ms
Backlight Life Time 50,000/hr

Power
Power Input

100V~240V AC 50/60Hz

Total Power Consumption

130 W

Mechanical Specifications
Operating Temp. 0~35C
Relative Humidity 20~80% RH
Storage Temp. -20~55C
Dimensions(mm)

1126(L)x680(W)x137(D)

Mounting(LxW/mm) 600(L)x200(W)

Accessories
CD x 1
Power Core x 1
Wall mount x 1
Remote Control x 1
I/O Cover x 1
