RCH4000-TSB-DST
  • Overview
  • Download
Product discontinues. Contact us at Info@iTechLCD.com or click for Replacement Item.

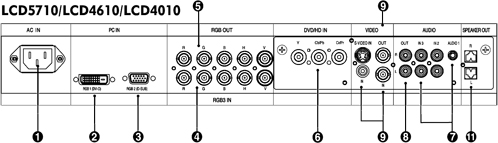

MultiSync Large- Screen LCDs feature a number of input connectors for maximum compatibility.
This makes it possible to upgrade adapters or software without having to purchase a new display.

1. AC IN connector Connects with the supplied power cord.

2. RGB 1 IN (DVI-D) To input digital RGB signals from a computer*

* This connector does not support analog input.

3. RGB 2 IN (mini D-Sub 15 pin) To input analog RGB signals from a personal computer or other RGB equipment.

4. RGB 3 DVD/HD [R, G, B, H, V] (BNC) To input the analog RGB signals or signals from other RGB equipment. A Sync-on-Green signal can be connected to the G connector.

5. RGB OUT connector (mini D-Sub 15 pin) To output the signal from the RGB 2 or 3 IN connector.

6. DVD/HD CONNECTOR (BNC) Connecting equipment such as a DVD player, HDTV device or laser disc player.

7. AUDIO IN 1,2,3 Input audio signal from external equipment such as a computer, VCR or DVD player.



8. AUDIO OUT Output the audio signal from the selected AUDIO IN source.

9. VIDEO INPUT/OUTPUT CONNECTOR VIDEO IN connector (BNC and RCA): Input a composite video signal. BNC and RCA are not available at the same time. (Use only one input).

VIDEO OUT connector (BNC): Output the composite video signal from the VIDEO IN source. S-VIDEO IN connector (DIN 4 pin): Input the S-video (Y/C separate signal).

10. EXTERNAL CONTROL (mini D-Sub 9 pin) RS-232C Input signal from control equipment such as a computer.

In connector: Input signal from control equipment such as a computer or the output from a different MultiSync LCD5710 / LCD4610/LCD4010/LCD3210 LCD5710/LCD4610/LCD4010 only - Out connector: To connect multiple MultiSync LCD5710/LCD4610/LCD4010

11. EXTERNAL SPEAKER TERMINAL Outputs the audio signal from the selected audio source.



SERIES FEATURES AND BENEFITS
High brightness level and contrast ratio, measured according to VESA FPDM, enhance the visual experience
XtraView® technology allows for up to 176° wide-angle viewing
User-friendly, effi cient design features VESA-standard mounting and an overall lightweight construction for easy transport and installation
Automatic black level adjustment regulates grayscale images for optimal picture quality
Reduced refl ection and glare in high ambient light environments provide you with a more comfortable view of the screen
Optional detachable speakers deliver an enhanced multimedia experience with amazing sound quality
Rapid Response™ technology delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video



Digital Signage Technology Suite Feature and Benefi ts
Improved Screen Performance   Lower To tal Cost of Ownership   Enhanced display Management

1366 x 768 ultra-high resolution (1920 x 1080 for LCD5710) for true 16:9 aspect ratio



New backlight system leads to higher power effi ciency and a longer display life



Improved CableComptechnology equalizes the video signal to eliminate color halos on long cable runs (LCD4010, LCD4610 and LCD5710)

High-definition capable display supports 480i, 480p, 720p and 1080i (1080p for LCD5710)

  Power save function puts the display in power management mode when a sync or input signal is lost

Video detect automatically fi nds the first or last signal used for easy setup

New backlight system leads to better brightness uniformity



Screen saver function reduces the risk of image persistence for extended display life



Picture-in picture (PIP) places a smaller video frame within the full-screen video frame

Zoom mode enables you to customize the screen size in three directions



Gamma adjustment reduces the effect of high contrast images on long-term image quality



Picture-on-picture (POP) places a smaller video frame next to the full-screen video frame (LCD4010, LCD4610 and LCD5710)

TileMatrix allows you to build video walls (up to 25 displays in a 5x5 matrix [4x4 for LCD3210] equalling almost 20 ft. diagonal)



Side color function adjusts black bars in 4:3 mode to reduce the risk of image persistence with extended use



Side-by-side view places two video frames of equal size next to each other (LCD4010, LCD4610 and LCD5710)



Gamma selection lets you adjust the screen to your preferred settings (2.2, 2.4, S-Curve or native)



Real-time clock allows for content scheduling and monitor sleep/wake management, improving energy savings and extending display life

TileComp works in tandem with TileMatrix to compensate for the bezel width and create a more seamless video wall

Image fl ip allows you to properly display content originally prepared for alternative display technologies such as rear projection (LCD4010, LCD4610 and LCD5710)



Internal temperature sensors control self-protective circuits to minimize heat damage



Black level expansion improves image quality in shaded and darker images

Film mode delivers a smoother image for DVD movies



Self-diagnostic capabilities help detect possible failure points via queries through DDC/CI and RS-232C



DDC/CI enables communication between the PC and monitor for display management, diagnostics and the remote control

Color temperature adjustable from 600K to 10,000K





Brightness control reduces energy consumption and heat generation while extending display life



Power-on delay allows for multiple displays on a single electrical circuit



6-axis color control engine allows for precise and simplifi ed color, color temperature and saturation adjustment (LCD4010, LCD4610 and LCD5710)



Daisy chain capability enabled through RS-232C allows for individually addressable display control (LCD4010, LCD4610 and LCD5710)

MicroTouch DST Large Format Touch System

Fundamentally Different Touch for Interactive Signage

For most popular large-format touch technologies touch position is calculated when a finger interrupts an optical field, infrared light beams or acoustic waves on or above the surface of the touch screen substrate. Relying on these active surface properties makes these technologies susceptible to different types of interference or environmental limitations, which makes 3M's Dispersive Signal Technology (DST) a fundamentally different touch solution for large-format display applications.

The MicroTouch DST Touch System, based on 3M Dispersive Signal Technology, consists of a chemically-strengthened glass substrate with piezos mounted on each corner, mated to a sophisticated, dedicated controller. The DST Touch System determines the touch position by pinpointing the source of bending waves created by finger or stylus contact within the glass substrate. This process of interpreting bending waves within the glass substrate helps eliminate traditional performance issues related to on-screen contaminants and surface damage, and provides fast, accurate touch attributes.

Dispersive Signal Technology Large Format Touch System
Specifications
Accessories Included: AC power cord,user manual, wireless remote control, batteries, 15-pin RGB cable, CD-ROM
Brightness 500 cd/m2 (typical)
Colors 256 RGB levels, more than 16 million colors
Contrast Ratio 800:1 (typical)
Dimensions Net with stand:
38.7" (W) x 24.1" (H) x 13.0" (D)
981.8 x 611.1 x 330 mm

Net without stand:
38.7" (W) x 22.8" (H) x 5.5" (D)
981.8 x 579.8 x 140 mm

Input Signal Video: ANALOG RGB 0.7 Vp-p / 75 Ohms
Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
Input RGB1: DVI-D
RGB2: Analog D-sub
RGB3: Analog BNC
Video 1: Composite RCA or S-Video
Component Video 1 (DVD/HD): Component BNC
Audio: Audio 1( minijack), Audio 2 and 3 Stereo (RCA)
Internal Speaker: None
External Control: RS232, DDC-CI
Limited Warranty 3 year including backlight
Operating Altitude 4,200m/13,780 ft.
Operating Humidity 20-80%
Operating Temperature 5-40 C/41-104 F
Pixel Pitch 0.648mm
Power Consumption (typical)
On: 230W
Power Savings Mode: <5W
Power Supply Power Consumption: On 230W
Power Saving Mode: <5W
Recommended Resolution 1360 x 768 depends on graphics card used
Regulatory Approvals UL 60950/CSA C22.2 No. 950/TUV-GS/EN60950/FCC-B/DOC-B/EN55022-B/EN55024/EN61000-3-2/EN1000-3-3/CE
Resolutions Supported 720 x 400 @ 70-85Hz
640 x 480 @ 60-85Hz
800 x 600 @ 60-85Hz
832 x 624 @ 74.5Hz
1024 x 768 @ 50-85Hz
1280 x 1024 @ 50-85Hz
1600 x 1200 @ 60 Hz (Compressed)
1280 x 768 @ 50-85 Hz
1360 x 768 @ 50-85 Hz
NTSC/PAL,SECAM,4.43NTSC,Pal60 HDTV,480i, 480p, 720p, 1080i
Storage Altitude 12,000m/39,370 ft.
Storage Humidity 10-90%
Storage Temperature -20-60 C/-4-140 F
VESA Hole Configuration Spec. 200 x 200 mm (8 hole) / 200 x 100 mm (6 hole)
Viewing Angle Up 85 / Down 85 / Left 85 / Right 85 (typ.)
Voltage Rating AC 100-120V / AC 220-240V @ 50/60 Hz
Weight Net with stand: 60.6 lbs. / 27.5 kg
Net without stand: 57.3 lbs. / 26.0 kg
Output RGB: Daisychain RGB2, RGB3
Video: Daisychain Video1
Audio: Daisychain - Selected Audio in
Control: RS232 for multiple monitor control
Audio Amplifier: 7W x 7W
Additional Features Power Management, Plug and Play (DDC/CI, DDC2B), PIP (Remote), Multi level Zoom,FullScan,6 axis color, CableComp, TileMatrix, TileComp, Screen Saver, Rapid Response,Video Ready (no tuner), Infrared remote control included
