SW0500SD
  • Overview
  • Download

Features

• 5-inch LCD
• 800×RGB×480
• 16:9 / 4:3 adjustable
• 3G/HD/SD-SDI, HDMI, Composite video
• SDI embedded audio output via 3.5mm earphone socket
• HDMI embedded audio output via 3.5mm earphone socket
• Underscan / Overscan switch
• Canon DLSR scale zoom-in
• Customer editable video TITLE
• Picture rotate and flip

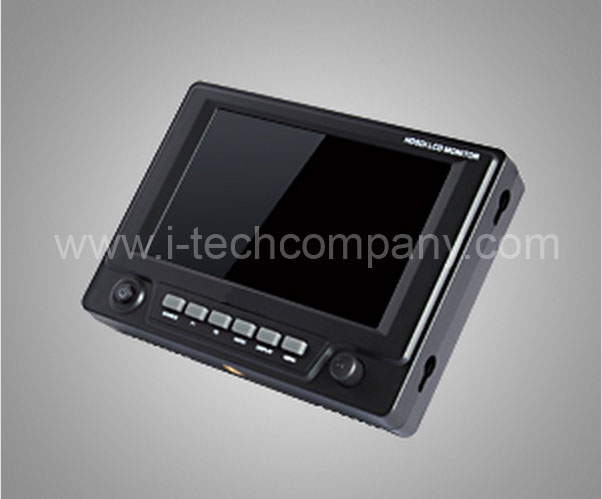

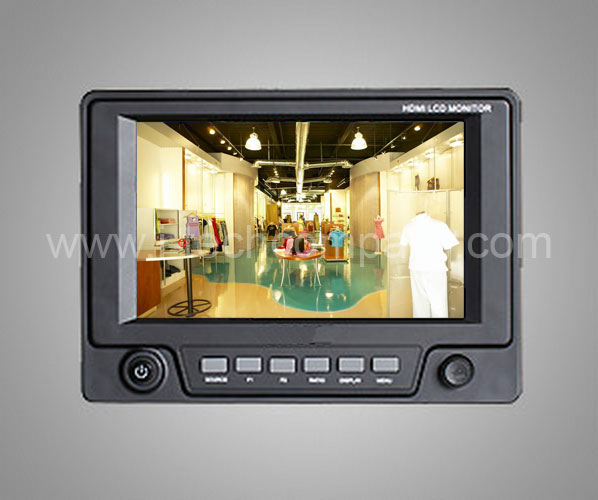

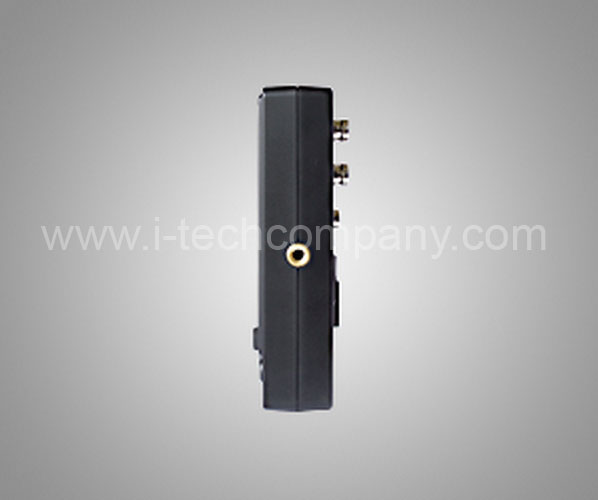

SW0500SD is a portable on-camera monitor, with a 5-inch LCD panel, 800×RGB×480. It has Canon DSLR scale zoom-in, video flip, customer editable video title, and safety mark display.

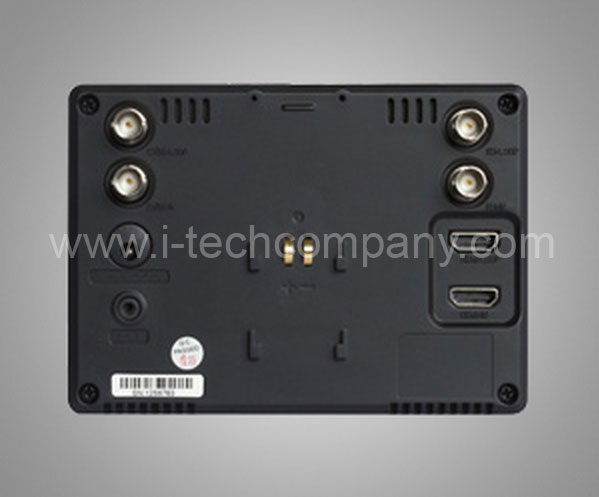

SW0500SD accepts 1 3G/HD/SD-SDI, 1 HDMI, 1 Composite video, and all the input signals have loop through outputs. Support SDI and HDMI embedded audio output via 3.5mm earphone socket.



Specifications

Input 1 BNC /HD/SD-SDI input
1 BNC CVBS input
1 HDMI HDMI in
Output 1 BNC /HD/SD-SDI loop through output
1 BNC CVBS loop through output
1 HDMI HDMI loop through output
Signal format SDI SMPTE-424M 1080p (60 / 59.94 / 50)
SMPTE-274M 1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M 720p (60 / 59.94 / 50)
SMPTE-125M 480i (59.94)
HDMI 480I / 576I / 480P / 576P
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
Composite PAL/NTSC
LCD panel Size 5-inch
Resolution 800×RGB×480
Aspect ratio 16:9 (4:3 adjustable)
Viewing angle H/V: 140/120
Brightness 350cd/m2
Contrast 500:1
Working Voltage 12V DC, or battery 6.5V-17V
Rated power consumption 8W
Dimension 149×107×28 mm
Net Weight 400g
Gross Weight 980g
Working temperature 0℃~+40℃
Working humidity 10%~90%
Storage temperature -15℃~+60℃
Storage humidity 10%~90%



Accessories

Accessory Picture Function
Sun Hood s-1048H4 LCD sun light hood, made of Nylon.
Carrying Case s-1048H5 Nylon, strong and high quality.
(Optional Purchase)
Power Adaptor s-1048H5 2-pin power adaptor
Protecting film s-1048H5 Protecting film for LCD panel.
HDMI cable s-1048H5 Mini HDMI to Standard HDMI cable
(optional purchase)
Stand s-1048H5 Cold shoe stand.
