32" Fanless Open Frame All-In-One Digital Signage Display and Computer Support HDTV & 3D (Model: WPC-OF3200A)

32" Fanless Open Frame All-In-One Digital Signage Display and Computer Support HDTV & 3D (Model: WPC-OF3200A)

32" Fanless Open Frame All-In-One Digital Signage Display and Computer Support HDTV & 3D (Model: WPC-OF3200A)

WPC-OF3200A
  • Overview
  • Download
Product discontinues. Call us at 888-483-2418 for Replacement Item.
Open-frame Signage
A 32" LCD panel display, provides a high-performance for the digital signage requests.
Featuring 1366 x 768 resolutions, remarkable brightness, wide-angle viewing function, capture the attention of viewers and ensuring the messages reach audiences with maximum impact.

i-Tech Shows Expertise to Provide Special Custom-made Display Resolutions
In Year 2006, i-Tech has successfully support customers many custom-made special resolutions with its engine boxes product line. Now i-Tech shows expertise again to provide complete solution in display engine for Digital Signage Application.

Versatile and Powerful Solution
i-Tech., a leading provider of display engine solutions and services, can drive Plasma or big-scale LCD monitors in 15:10 or 16:9 aspect ratios (resolutions such as 852x480, 1280x720, and 1366x768 etc.) or any special aspect ratio (resolution as 1024x576) by i-Tech display engines.

Advanced and Complete Solution
The native display timing of most wide-screen displays such as LCD/Plasma/projection systems and LED walls are not defined within VESA standard which diminishes picture effect because digital signage integrator can only choose the resolutions from those graphic drivers can support. Since the display timing is not precisely matched between display and player, blurred and indistinct pictures disappoints potential customers.

In the wide-screen digital signage market, i-Tech is the only company has the expertise to provide custom-made solutions for customers. No matter analog (VGA) or digital (DVI) wide-screen displays of various sizes. i-Tech display engines can drive any kinds of displays to show the native/optimum effects. Customers are released from the difficulty of handling different display suppliers and system integrators. Thus, if you have any questions or requests to our product, please feel free to contact us at any time. i-Tech will offer you our best service as you need.

LCD Features
-32” WXGA (1366 x 768) Resolution, 16:9 signage display
- High panel brightness and contrast - 500 nits, 1200:1 Contrast Ratio.
- Wide viewing angle 176° at CR > 20
- ABLC (Auto-Black-Level-Compensation)
- DNX Technology (Digital Natural Expression)
- Advance 3D noise reduction
- Advanced Low-Angle-Interpolation
- 50,000 Hours panel life offered
- Low Power Consumption – consuming within 180 W
- Input Connectors – VGA x 1, HDMI x 1, RCA x 2, Line in x 1
- Output Connector – Headphone x 1

LCD Specifications
Environmental
Operating Temperature: 5°C ~ 40°C
Operating Humidity: 20 ~ 80%
Storage Temperature: -20°C ~ 60°C
Storage Humidity: 10 ~ 90%
LCD Panel
Brightness 500 nits
Contrast 1200:1
Viewing Angle H:176° / V:176°
Response Time 6.5 ms (GTG)
Supported Colors 16.7 M colors
Resolution 1366 x 768
IR Touch
Interface: Serial RS-232. Baud Rate: 9600.
8 Data Bits, 1 Stop Bit, No Parity, Full Duplex
Hardware Resolution:
Optical Element Pitch: 5.0 (W) x 5.0 (H) m.m.
Detection Pitch: 2.5 (W) x 2.5 (H) m.m
Minimum Touch Medium Size: 6.5 (W) x 6.5 (H) m.m.
Software Resolution: Resolution Based on Controller; up to 4096 x 4096
Display Features
Horizontal Frequency 30 KHz ~ 65 KHz
Vertical Frequency 50 Hz ~ 75 Hz
Input Resolution 1360 x 768 (PC) 1360 x 768 (DVI)
DDC DDC 2B
OSD Control Push button, IR remote controller
OSD Language English
Video Signal type RGB Analog / DVI / HDMI
LCD Physical Features
Connector 15 pin D-Sub / HDMI
Power Supply AC 100 Vac ~ 240 Vac
Diagonal 32.0”
Weight (W/O stand) 27 kg
Dimension (W/O stand) 810 x 510 x 125 mm (W x H x D)
LCD Special Features
Aspect Ratio 1:1 / Aspect / Fill All / Zoom1 / Zoom2
Lighten Mode Bright / Medium / Dark
Color Temperature Warm / Normal / Native
Audio Output 7 W + 7 W (Speakers) (option)

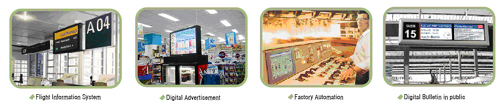

Application:

Why i-Tech Engine Box ?
- Slim and rugged mechanism design.
- Buit in 16:9
- Long Life Time Guarantee
- Specific Thermal Solution
- High Reliability
- Intelligent Installation
- WDT & PXE
- Portrait
- All-in-one integration
Thermal Solution
To support continuous operation, i-Tech have proprietary design of thermal solutions.
* Special heat pipe thermal module supports up to P4 3.06GHz
.
* The most silent model in its kind. (<40dB with P4 3.06GHz / 100% CPU loading)

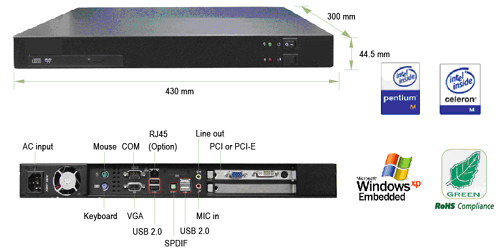

Easy Mounting and Installation
* You can see that all the I/Os are in the one side.
* Worry-free for wiring and cabling in installation.


Engine Box Feature:
- Powerful Digital Signage Control Box
- Compact Design (430 x 300 x 44.5 mm )
- Intel® 915GM GMA 900 solution
- PCI or PCI-express Slot for expansion (not simultaneously)
- Optional CD/DVD-ROM
- Support 1920x1080 HDTV content & 3D application


P-M Plasma/LCD Display Engine

Specifications
Engine Box
CPU Type Intel Pentium M / Celeron M (Dothan Core only)
CPU Voltage 0.700V ~ 1.708V
CPU Speed Up to 2.26GHz, 27W
CPU FSB 533MHz FSB
Cache 2MB (Pentium M) / 512KB (Celeron M) Level 2 (CPU integrated)
Green /APM APM1.2
CPU Socket Socket 479 or micro-FCBGA on board
Chipset Intel 915GM Chipset GMCH: 82915GM 1257-pin FCBGA ICH 6M : 82801FBM 609-pin mBGA FWH
BIOS Award BIOS, support ACPI Function
Memory DDRII 533/400 SDRAM DIMM x1 (w/o ECC function), Max. 1GB
VGA 915GM built-in, supports CRT, RCA, S-VIDEO & HDTV
LVDS LCD Panel 915GM built-in, supports 18+18 bits single or dual channel LVDS
LAN 1. ICH 6M built-in 10/100BT MAC + Intel 82562ET PHY 2. Marvell 88E8053 PCI Express Gigabit LAN controller x1
USB ICH 6M built-in USB 2.0 host controller, support 6 ports
Serial ATA Ports ICH 6M built-in SATA controller, supports 2 ports
1394 TI TSB43LV22 (dual ports)
Parallel IDE ICH 6M built-in one channel Ultra DMA 33/66/100
Audio ICH 6M built-in Audio controller + AC97 codec ALC655 w/ 5.1 channels (Line-out & Mic.), SPDIF/OUT + NS LM4950 (8-ohm 2W stereo audio power amplifier)
LPC I/O W83627EHF: COM1, COM2 (RS232), Slim FDC 1.44MB, IrDA x1 & PS/2 Keyboard/Mouse controller, Hardware monitor (3 thermal inputs, 4 voltage monitor inputs, VID0-4 & 2 Fan Headers)
Expansion Slots PCI-E (x16) slot x1 Mini PCI socket x1
Edge Connector PS/2 Connector x1 for keyboard/mouse Giga bit LAN RJ45(function design in, as option) + dual USB stack connector 10/100 LAN RJ45 + dual USB stack connector DB9 & DB15 stack connector x1 for COM 1 & VGA SPDIF/OUT connector x1 1394 vertical Connector x1 (option) RCA Jack 2x1 for Audio (Line-Out & Mic)
Watchdog Timer Yes (256 segments, 0, 1, 2?255 sec/min)
Power input AC 100~240V / 0.7A / 50 ~ 60 Hz
Operating Temp. 0 ~ 45 °C
Storage Temp. -20 ~ 60 °C
Relative Humidity 10%~90% @ RH, non-condensing
Weight 5.0 kg
Dimension (L*W*D) (mm) 430 × 330 × 44.5
