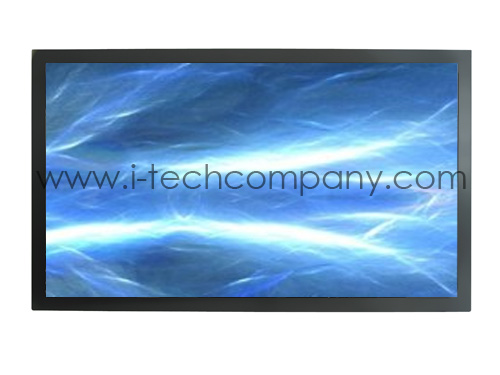

32" All-in-One Widescreen display with 3M DST Touch, USB (Model: PD-CP32AU)

32" All-in-One Widescreen display with 3M DST Touch, USB (Model: PD-CP32AU)

32" All-in-One Widescreen display with 3M DST Touch, USB (Model: PD-CP32AU)

PD-CP32AU
  • Overview
  • Specifications
  • Download
Features
  • Size: 32"/81.3cm TFT Industrial-LCD
  • Resolution: 1366x768 / WXGA
  • Colours: 16.7 Mio colors
  • Input: VGA & DVI-D
  • AC-Input: 100 - 240VAC
  • Options: chassis version or metal case unit, 3M DST touch screen, safety protection glass
    Sunlight readable version with bonded protection glass, audio function, PC integrated. VESA adapter
  • Misc: High quality metal case unit, horizontal usage possible, 24/7h usage, OSD RS232 serial interface
  • 1 year warranty
Series Model / Type CP Series 32” PD-CP32AU / 42” PD-CP42AU

Resolution 1366 × 768 (32”), 1920 × 1080 (42” / 52”)
Brightness (typ.) > 350 cd/m² w/o touch
Contrast ratio (typ.) > 1500:1
I/O ports D-Sub 15pin (analog), DVI-D optional: Video & S-Video
MTBF backlight > 40,000 h
  Customized colour and structure
  Chassis version for integration
  Touch screen, protection glass
Options* Optical bonded protection glass = sunlight readable
Audio function
Portrait panel
PC/Media player integration (not standardized for 26”)

  High quality metal case unit
Misc Horizontal usage
24/7 h usage
OSD RS232C serial interface
Approval CE, EN 61000-6-3/6-1, 60950-1
Mounting mounting holes (M4) on side and rear cover + optional VESA adapter
Power input 110 - 230 VAC; safety regulations:
Power supply approvals UL60950-1/ 60601-1, CSA, CE, TUV EN60950-1/ 60601-1
Availability World Wide
Detailed technical specifications upon request.
