2U Short Depth Dual Slides Rackmount 19" LCD Monitor 16-port CAT 5 KVM Switch Keyboard (Model:NVP192SC16)

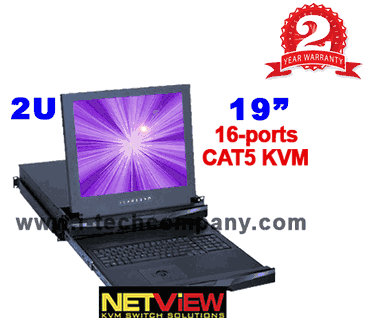

2U Short Depth Dual Slides Rackmount 19" LCD Monitor w/ 16-port CAT 5 KVM Switch Keyboard Drawer . Model:(NVP192SC16e) w/ Touch-Pad & (NVP192SC16b / NVP192SC16c ) w/ Trackball, all 16ports CAT5 KVM comes with (Model: IF-DUSB) 8pcs
  • Front View
  • Front View
  • Side View
  • Side View
  • Keyboard

2U Short Depth Dual Slides Rackmount 19" LCD Monitor w/ 16-port CAT 5 KVM Switch Keyboard Drawer . Model:(NVP192SC16e) w/ Touch-Pad & (NVP192SC16b / NVP192SC16c ) w/ Trackball, all 16ports CAT5 KVM comes with (Model: IF-DUSB) 8pcs

NVP192SC16
  • Overview
  • Download
LCD and KVM Fearures Option
LCD and KVM Specifications Accessories
Diagram Picking list
Mechanical Drawing Order information


Diagram

Connect your High Desity Cat 5 KVM

Top

LCD Features

  • Only 2U (3.5" high) of vertical 19" rack-mount space.
  • Only 17" deep for 15" or 17" LCD and only 19" deep for 19" LCD
  • 2U Dual Slides allows see LCD through closed cabinet door
  • High-brightness 300-nit,TFT LCD Panel and high contrast-ration active TFT LCD flat panel integrated folding display.
  • 19" display supporting 1280 x 1024 resolution.
  • Full 95-keys Windows keyboard (including a dedicated numeric keypad), and an integrated 19mm 3-buttons trackball. Optional for other keyboard type see Recommend Accessories for more details.
  • Industrial-grade heavy-duty steel construction with a built-in lock to prevent unauthorized console access.

IP Cat5 KVM Features

  • High density Cat5 KVM with either 16 or 32 ports in 1U
  • Increased distance of 40m between your server & KVM switch
  • Enhanced rear cable management using Cat5 cords
  • Mix PS/2, USB & SUN with Multi- Platform switch capability
  • Use of the RJ45 Cat5 interface allows for a higher number of ports in smaller density
  • Greater distances between your switch and servers allow enhanced data centre rack layouts
  • Traditional Cat5 cords, when compared to coaxial cables, provide simple cable management
  • Mix legacy PS/2 servers with newer USB and SUN solutions
  • Multi lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations
  • Dual power with failover
  • 12, 24 and 48 volt DC power options

Designed for:

Top

LCD Specification


LCD
Panel Samsung 19" LCD Panel
Screen Type TFT
Display Area 386.4(H) x 289.8(V) mm
Contrast Ratio 700 : 1
Viewing Angle 170 ° (H) x 170 ° (V) (Typ.)
Resolution 1280 x 1024
Pixel pitch 0.242(H) x 0.242(W) mm
Response Time Tr=15ms, Tf=10ms (Typ.)
Brightness 250 cd/m2
Panel Color 16.7M
Back Light 4 CCFTs (Cold Cathode Fluorescent tube)
Video
Horizontal Synchronization 64 KHz (Max.)
Vertical Synchronization 60 Hz (Max.)
Input Signal Analog RGB 0.7Vp-p
Power Management
VESA DPMS
Control
OSD Control Brightness, Contrast, Colour, Clock, H.Position, V.Position, Phase, Scaling, Auto config, Input select, Multi window, Clear EEPROM, OSD adjust, Save

External Connection

Power Input 12V/5A DC adapter
Video Input 15-pin D-Sub connector
Dimension
Product dimension 48.2(W) x 8.8(H) x 48(D)cm
Packing dimension 59.5(L) x 57(W) x 22(H)cm



KVM Technical Specification


• KVM Port
Number of ports : 16or32
Connector: RJ-45
Connectivity:

USB type or PS/2 type dongle, up to 40 meter ( 130 feet)

• Local Console
Graphic connector: HDDB15-pin HDDB15-pin, VGA
Resolution: Up to 1600x1200
Input device: 2 x USB type A for keyboard & mouse
• Management
Multilingual OSD : English, France, German, Spanish, Italian, Russian, Simplified Chinese,Japanese
Hotkey combination : Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win
Secunity: Password enable & disable, up to 8 users profile for port access
PC Selection: Front button, OSD menu & hotkey
• Expansion :
Up to 256 servers by 8-level cascade
• Compatibility
Multi-platform Mix PCs, SUNs, IBMs, HPs, DELLs Server
:Support: Windows Vista, 2003 / XP / 2000, Linux, Netware, Unix
• Power
Input: 100-240VAC, 50 or 60Hz, IEC type cord
Option DC : 12V/24V/48V DC input
Consumption : Max. 25 Watt
• Regulatory Approval
FCC,CE
• Environmental
Operating : 0 to 50"C
Storage: -10 to 60-C
Relative humidity: 90%, non-condensing
Shock: 50G peak acceleration (11 ms, half-sine wave)
Vibration : 58~100Hz / 0.98G (11 min / cycle)

Top

Mechanical drawing

Top

High Density Cat5 KVM

Expanding its range of server management solutions Austin Hughes introduces its new high density 16 and 32 port Cat5 KVM switches. Designed to provide added benefits to its users the new switch range offers increased density, increased distances, enhanced cable management and multiplatform capabilities over traditional KVM switch platforms. Using either a PS/2 or USB dongle at the server end of the installation allows a user to cost effectively specify the switch to match the exact server configurations - multiplatform switches allow older or redundant servers to be migrated to servers with newer USB interfaces without replacing switch hardware.



Enhanced User Interface

The user interface or OSD menu also offers many enhanced features for switch administration and user management, as an example the OSD allows Super Users to create custom user profiles / access rights for specific KVM ports. The OSD hotkey can also be configured using different key combinations and the multilingual interface allows users to select English, French, German, Spanish, Italian, Russian, Japanese and Simplified Chinese.

User profile with access right Various OSD hotkey combinations

Top

Options

(Click "OPTION" tab above to customize or call 1-888-483-2418 for detail):

Top



KVM Accessories

IF-DPS2 IF-DUSB CC600 CAT5-3
CAT5-6
CAT5-10
CAT5-15
USB dongle PS/2 dongle 6ft cascade cable Cat5 cable
3ft, 6ft, 10ft & 15ft

Top

Picking list

  • (2) Rear extension mounting brackets
  • (8) Mounting screws for rear extension mounting brackets
  • (4) Fasteners
  • (1) Power cord
  • (1) Power Adapter 110/220V

Top

Data Sheet
User Manual
Over IP Switch User Manual
