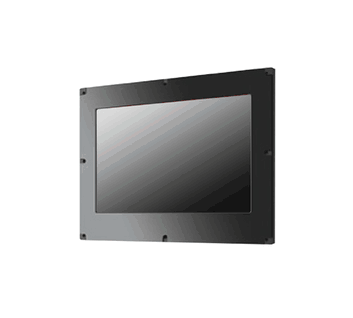

21.3" 700nits IP65 Front Flush Mount LCD Monitor w/ VGA Input, AC-IN w/Built-in PWR (Model: EFMF2130HB-IP)

IP65 Front Flush Mount, 4:3, 21.3" LCD Monitor, 1600x1200, LED-700nits, VGA Input, AC-IN w/Built-in PWR

IP65 Front Flush Mount, 4:3, 21.3" LCD Monitor, 1600x1200, LED-700nits, VGA Input, AC-IN w/Built-in PWR

EFMF2130HB-IP
  • Overview
  • Specifications
  • Download

Features:

  • IP65 front side sealed for water-dust proof
  • Modularize mechanical design provides flexible product configuration and easy maintenance
  • Optional build-in touch screen for interactive application
  • Available with auto-brightness sensor offers application in day and night
  • Auto Power On: Monitor is always "ON" when connect to power.
  • Auto Video Signal On: Monitor (Backlight) will turn off when no video signal, but it will Auto turn back on.

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size 4 : 3 / 21.3" viewable diagonal area
Active Area / Pixel Pitch 433.152(H) x 324.864(V) mm / 0.2115(H) x 0.2115(V) mm
Native Resolution / Colors 1600(H) x 1200(V) / 1.07B
Brightness / Contrast 700 cd/m2 (typ) / 800 : 1
Response Time < 25 ms
Viewing Angle (typical) H. 178° (- 89° ~ + 89°) , V. 178° (- 89° ~ + 89°)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
  Sync Separate Sync, Composite Sync, Sync On Green
  Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System 2W speaker x 2
Input Terminals 1 x VGA, 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz
Power Consumption Operation / Power Saving 111.25 watt , < 1 watt (Support DPMS)
Operating Condition Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 60°C (- 4°F ~ 140°F) , 10% ~ 90% (no condensation)
Certification   FCC , CE
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD
Weight N.W. / G.W. 9 Kgs / 10.5 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

Options Touch Video / TV Enhanced Panel Others
Resistive touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch SV + AV + AV_Looping High brightness panel Networking Digital Signage
SAW touch SV + AV + TV Wide Temperature Motion Sensor
Infrared touch   Sunlight Readable Light Sensor
Protected glass     Auto-Dimming
