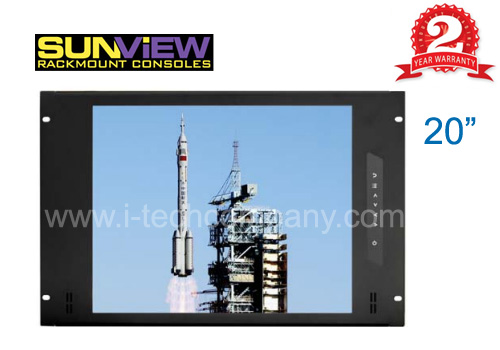

9U 20" LCD Display Panel (Model: SNP920)

9U 20" LCD Display Panel (Model: SNP920)

SNP920
  • Overview
  • Download

LCD Drawer Benefits:
  • 7U 17", 8U 19" or 9U 20" rackmount LCD with DVI-D / VGA input
  • Direct Support for SUN Micro 1152 x 900 native resolution
  • Ideal for CCTV security & industrial control

Options:
  • 48V, 24V or 12VDC power

Basic I/O: DVI-D + VGA




Diagram (mm):

Specifications:
LCD Panel
Manufacturer
AUO
AUO
LG
Diagonal size
17" TFT
19" TFT
20.1" TFT
Direct Resolution
1152 x 900
1152 x 900
1152 x 900
Native Resolution
1280 x 1024
1280 x 1024
1600 x 1200
Brightness (cd/m2)
250
250
300
Backlight
CCFL
LED
CCFL
Colors
16.7M
16.7M
16.7M
Contrast Ratio (typ)
1000 : 1
1000 : 1
800:1
Viewing Angle (H/V)
160° x 160°
170° x 160°
178° x 178°
Active area (mm)
338 x 270
376 x 301
408 x 306
MTBF (hrs)
50,000
30,000
45,000
Signal input
VGA or DVI-D
VGA or DVI-D
VGA or DVI-D
Casing Color
Black front panel ( RAL 9005 )
Dark grey rear case ( RAL 7037 )
Weight
Net
6.5 kgs (14 lbs)
7 kgs (15 lbs )
8.4 kgs (18.5 lbs)
Gross
8.5 kgs (19 lbs)
9 kgs (20 lbs)
11 kgs (24 lbs)
Environmental
Operating
0 to 50°C Degree
Storage
-5 to 60°C Degree
Relative humidity
5~90%, non-condensing
Shock
10G acceleration ( 11 ms duration )
Vibration
5~500Hz 1G RMS random vibration
Regulatory
FCC, CE, RoHS
Power
Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
Max. 48 Watt, Standby 5 Watt
Product Dimensions (Single console)
SNP717
480 x 54 x 310 mm / 18.9 x 2.1 x 12.2 inch
SNP819
480 x 53 x 355 mm / 18.9 x 2.1 x 14 inch
SNP920
480 x 63.5 x 399 mm / 18.9 x 2.5 x 15.7 inch
Packing Dimensions (Single console)
SNP717
529 x 124 x 495 mm / 20.8 x 4.9 x 19.5 inch
SNP819
529 x 124 x 495 mm / 20.8 x 4.9 x 19.5 inch
SNP920
583 x 124 x 529 mm / 23 x 4.9 x 20.8 inch
