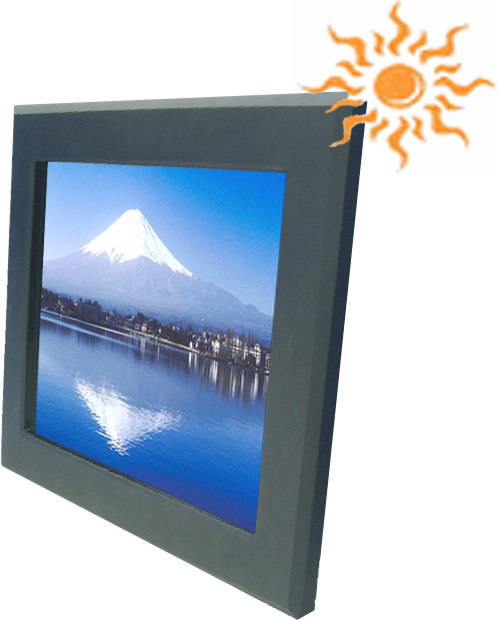

20.1" Sunlight Readable Panel Mount LCD Monitor 456 Nits (Model: WPMH2010A2)
- Overview
- Download
| Specifications | |
| Model Name | WPMH2010A2 |
| Viewable Size lmage | 20.1" |
| Active Display Area (mm) | 408.0(H)x306.0(V) |
| Number of Pixels | 1600x1200(UXGA) |
| Pixel Pitch(mm) | 0.51(H)x0.51(V) |
| Display Color | 16.7M(8bits/color) |
| Contrast Ratio | 700:1 |
| Brightness (nit) | 312.5 |
| Viewing Angle (CR >=10) | -85~85H);-85~85(V) |
| Synchronization Range Horizontal / Vertical |
31.5~80KHz/56~75Hz |
| Recommended Resolution | 1600x1200@60Hz |
| Signal Connector | 15 pin D-sub |
| Power Soruce | AC 100~240 V, Universal, ±10% |
| Power Consumption | 60 W typical, normal operation |
| Power Management | VESA DPMS Compliant |
| Optional Video Input | S-Video, Composite Video |
| Plug & Play | VESA DDC 1/2B |
| Optional DVI Input | Yes |
| Optional Touch Screen | SAW |
| Optional protection glass(reflection rate<0.5%) | Anti-reflective glass |
| Operation Temperature | 0°C~50°C |
Outdoor readability
| Ambient light(nit) | Brightness measure Angle | 10,000 | 30,000 | 80,000 |
| Brightness gain(BL0n)(nit) | 35° | 312.5 | 456 | 680 |
| Reflectance(net)(%) | 0.7% | 0.68% | 0.45% |
