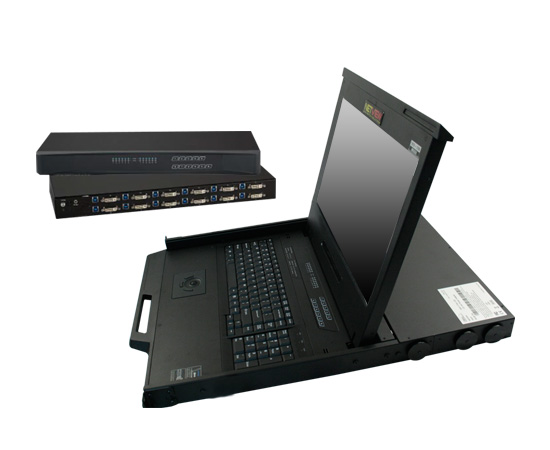

1U Rackmount 17" Wide 1920 x 1200 WUXGA, with 104 key notepad keyboard w/ touchpad (e) (Model: NW117X-12De)

1U Rackmount 17" Wide 1920 x 1200 WUXGA, with  104 key notepad keyboard w/ touchpad (e) (Model: NW117X-12De)

1U Rackmount 17" Wide 1920 x 1200 WUXGA, with 104 key notepad keyboard w/ touchpad (e) (Model: NW117X-12De)

Main Feature

    • 1U 17" widescreen LCD console drawer with VGA, DVI-D and HDMI w/ speaker
    • 1920 x 1200 native WUXGA Ultra high resolution
    • PIP & Picture by Picture viewing efficiency
    • 104-key keyboard with either touchpad or trackball
    • New enhanced aesthetics with molded front handle
    • 2 post rack mounting available
    • Short depth design of 580mm(23 inch) Deep
NW117X-12De
  • Overview
  • Specifications
  • Download
  • Contact Sales

Features

  • 1U 17" widescreen LCD console drawer with VGA, DVI-D and HDMI w/ speaker
  • 1920 x 1200 native WUXGA Ultra high resolution
  • PIP & Picture by Picture viewing efficiency
  • 104-key keyboard with either touchpad or trackball
  • New enhanced aesthetics with molded front handle
  • 2 post rack mounting available
  • Short depth design of 580mm(23 inch) Deep
  • 12-port DVI-D, USB & Audio KVM
  • DVI-D single link support 1920 x 1200 transmission
  • Support widescreen & native SUN 1152 x 900 resolution
  • Multi-platform for PCs, SUN and Mac G3 / G4 Mac / iMac
  • Hot pluggable, no software or drivers required

LCD Specifications

LCD Panel
Diagonal size 17" widescreen TFT
Max. Resolution 1920 x 1200
Brightness (cd/m2) 210
Backlight LED
Colors 16.7 M, 8-bit
Contrast Ratio (typ) 600 : 1
Viewing Angle (H/V) 130 x 110
Active area (mm) 367 x 230
MTBF (hrs) 20,000
Signal input VGA, DVI-D, HDMI
Casing Color Black ( RAL 9005 )
Weight ( Single console )
Net 10.9 kgs ( 24 lbs )
Gross 15.8 kgs ( 34.8 lbs )
Environmental
Operating 0 to 50C Degree
Storage -5 to 60C Degree
Relative humidity 5~90%, non-condensing
Shock 10G acceleration ( 11 ms duration )
Vibration 5~500Hz 1G RMS random vibration
Regulatory FCC, CE
Power
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption Max. 48 Watt, Standby 5 Watt
Product Dimensions ( Single console )
Product 441.6 x 480 x 44 mm / 17.4 x 18.9 x 1.73 inch
Packing 590 x 823 x 140 mm / 23.2 x 32.4 x 5.5 inch


DVI KVM Specifications

KVM Port
Number of ports 12
Connector DVI-D connector
USB 3.0 connector ( combined for keyboard, mouse & audio)
Connectivity Combo 4-in-1 KVM cable, 6 or 15 feet
Local Console
Graphic connector 1 x DVI-D
Resolution Up to 1920x1200
Input device 2 x USB type A for keyboard & mouse
Audio out 1 x 3.5mm stereo audio
Management
PC Selection Front button & keyboard hotkey
Compatibility
Multi-platform Mix PCs, SUN and Mac G3 / G4 Mac / iMac
Support Windows 7 / Vista / 2003 / XP, Linux, Unix

Regulatory
Safety FCC & CE certified
Environment RoHS2 & REACH compliant
Environmental
Operating 0 to 50C
Storage -5 to 60C
Relative humidity 90%, non-condensing
Shock 50G peak acceleration (11ms, half-sine wave)
Vibration 58-100Hz/0.98G (11ms/ cycle)
