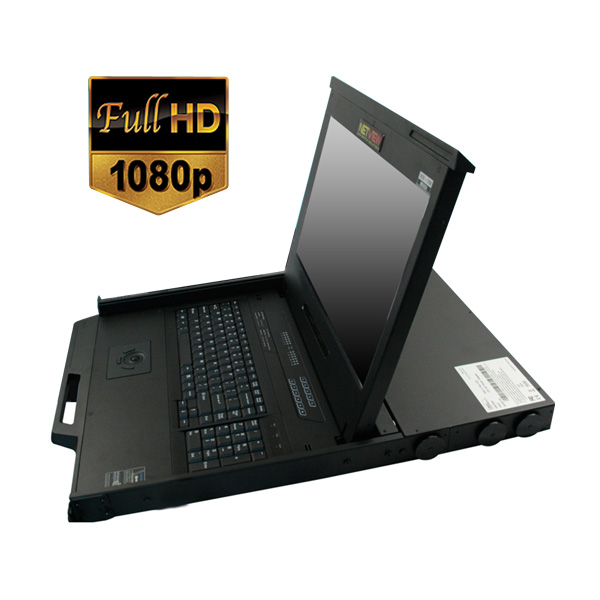

1U 17.3" LCD console drawer 104 key notepad MAC KB with trackball with 12-port DVI-D (Model: NW117HD-12DMb)

1U 17.3" widescreen Full HD 1920 x 1080 LCD console drawer, with 104 key notepad MAC keyboard w/ Trackball (b) with 12-port DVI-D only+ USB+ Audio KVM switch, Audio out x 1, Includes NC-6: 6pc 6ft long DVI +USB+ Audio KVM Cables, 460mm(18 inch) Deep

1U 17.3" widescreen Full HD 1920 x 1080 LCD console drawer, with 104 key notepad MAC keyboard w/ Trackball (b) with 12-port DVI-D only+ USB+ Audio KVM switch, Audio out x 1, Includes NC-6: 6pc 6ft long DVI +USB+ Audio KVM Cables, 460mm(18 inch) Deep

Main Feature

  • 1U 17.3" widescreen LCD console drawer
  • Support Full HD with 1080p resolution
  • 104-key keyboard with either touchpad or trackball
  • New enhanced aesthetics with molded front handle
  • Short depth design of 460mm (18 inch)Deep
  • 12-port DVI-D, USB & Audio KVM
  • DVI-D single link support 1920 x 1200 transmission
  • Support widescreen & native SUN 1152 x 900 resolution
  • Multi-platform for PCs, SUN and Mac G3 / G4 Mac / iMac
  • Hot pluggable, no software or drivers required
Inquiry/Quote Request
NW117HD-12DMb
  • Specifications
  • Download
  • Contact Sales

LCD Specifications
LCD Panel
Diagonal size 17.3" widescreen TFT
Max. Resolution 1920 x 1080
Brightness (cd/m2) 300
Backlight LED
Colors 16.7M, 8-bit
Contrast Ratio (typ) 1000 : 1
Viewing Angle (H/V) 178� x 178�
Active area (mm) 382 x 215
MTBF (hrs) 15,000
Casing Color Black ( RAL 9005 )
Weight ( Single console )
Net 10.8 kgs ( 24 lbs )
Gross 15.8 kgs ( 34.8 lbs )
Environmental
Operating 0 to 55èš“ Degree
Storage -20 to 60èš“ Degree
Relative humidity 5~90%, non-condensing
Shock 10G acceleration ( 11 ms duration )
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory FCC, CE & CCC certified
Power
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption Max. 48 Watt, Standby 5 Watt
Product Dimensions ( Single console )
Product 441.6 x 584.2 x 44 mm / 17.4 x 23 x 1.73 inch
Packing 589.28 㩜 762 x152.4 mm / 23.2 x 30 x 6 inch


MAC Keyboard / Mouse Options



How to Use "MAC" Keyboard




DVI KVM Specifications
KVM Port
Number of ports 12
Connector DVI-D connector
USB 3.0 connector ( combined for keyboard, mouse & audio)
Connectivity Combo 4-in-1 KVM cable, 6 or 15 feet
Local Console
Graphic connector 1 x DVI-D
Resolution Up to 1920x1200
Input device 2 x USB type A for keyboard & mouse
Audio out 1 x 3.5mm stereo audio
Management
PC Selection Front button & keyboard hotkey
Compatibility
Multi-platform Mix PCs, SUN and Mac G3 / G4 Mac / iMac
Support Windows 7 / Vista / 2003 / XP, Linux, Unix

Regulatory
Safety FCC & CE certified
Environment RoHS2 & REACH compliant
Environmental
Operating 0 to 50èš“
Storage -5 to 60èš“
Relative humidity 90%, non-condensing
Shock 50G peak acceleration (11ms, half-sine wave)
Vibration 58-100Hz/0.98G (11ms/ cycle)
