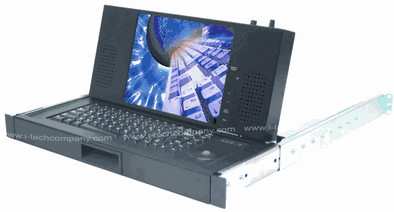

1U Rackmount Compact 10.4" TFT LCD Monitor. (Model: RCK110e)

1U Rackmount Compact 10.4" LCD Monitor Keyboard Drawer. Optional Touchpad keyboard (RCK110e)/Trackball(RCK110b)/Cherry Trackball(RCK110c)

1U Rackmount Compact 10.4" LCD Monitor Keyboard Drawer. Optional Touchpad keyboard (RCK110e)/Trackball(RCK110b)/Cherry Trackball(RCK110c)

Inquiry/Quote Request
rck110e
  • Overview
  • Specifications
  • Download
Product Discontinues. Call Us at 888-483-2418 for Replace items.



Features

•  Display, keyboard, trackball or touchpad and optional speakers in 1U of rack space for 19" racks.

•  Mounted with included smooth action ball bearing slides which lock in the extended position.

•  Display powers off preserving back light life when tilted down for sliding into the rack.

•  Optional integrated amplified speakers and/or composite and S-Video inputs.

•  Retainer and lock options to keep unit contained in the rack when not in use.

•  Housed in rugged steel construction with a durable powder coat finish.

• Standard Slide-Rail Depth:
Min Depth: 19"
Max Depth: 30"

• Options Slide-Rail Depth:
Min Depth: 16"
Max.Depth: 24.5"

Comes with

  • (1) RKP1 Series KVM drawer unit
  • (1) 3-in-one KVM cable, 6-feet
  • (2) Rear extension mounting brackets
  • (8) Mounting screws for rear extension mounting brackets
  • (4) Fasteners
  • (1) Power cord
  • (1) Power Adapter 110/220V
Options
Keyboard Cherry KB w/ trackball
Std KB w/ trackball
Std KB w/ touchpad
Speakers Yes
Video Composite and S-Video
Front Panel Front Panel + retainer screws
Front panel + lock
Front panel + lock + retainer screw

Display Specification

Display Type:

Active matrix TFT LCD

Colors:

262K colors

Contrast Ratio:

600:1 (typ.)

Brightness:

190 nits

Viewing Angle:

178° (H) / 178° (V)

Response Time:

25ms (typ.)

Resolution:

640 x 350
640 x 480
800 x 600
1024 x 768

Display Area:

10.4" Diagonal

Horizontal Frequency:

31.5 to 80 KHz

Vertical Frequency:

56 to 75 Hz.

Surface Treatment:

Anti-glare/Hard coat.



General Specifications

Dimensions:

19.0"(W)x1.75"(H)x14.50"(D)

Weight:

27 lbs.

Power (TFT Display):

90 - 260 VAC, 50/60 Hz
60 Watts maximum

On-Screen Controls:

Brightness, contrast, horizontal & vertical position, auto adjust, OSD H & V Postion, Load and Save

Plug & Play:

DDC1 and DDC2B

Temperature:

Operating: 0 to 50°C
Storage: -20 to 60°C

Humidity:

10 to 85% RH (max)

Input Signal (VGA)

RGB analog video, TTL H & V sync

Input Connector:

Display: 15-pin mini D-Shell

Colors Available:

Black



Keyboard and Mouse Specifications

Rollover:

Alpha N-key rollover

Auto repeat:

Yes.

Self Diagnostics:

At power on & system reset

Data Buffer:

All codes buffered before sending

Operating voltage:

+5 VDC +/- 5%

Operating current:

100 mA max.

Trackball Size:

16mm

Touchpad Size

2.1" x 1.25"

Buttons:

Left and Right, scroll (touchpad)

Interface:

Keyboard: PS/2
Trackball: PS/2
Touchpad: PS/2

Compatibility:

DOS, Windows 3.X, Windows 95/98, Windows NT, Windows 2000,XP. (specs subject to change without notice)
