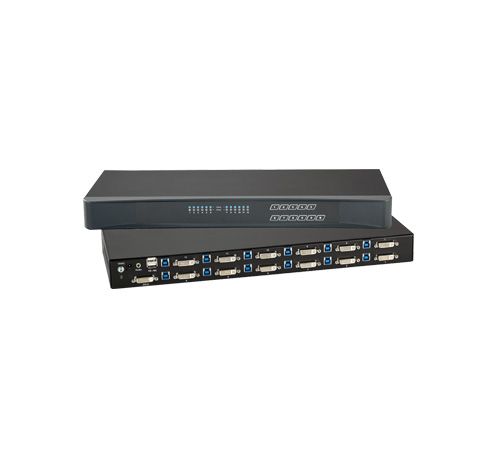

1U Rackmount 12-port DVI-D, USB, Audio KVM Switches with OSD Support 1920 x 1200 12pcs of NC-6 6ft long KVM cable (Model: NVD1201)

1U Rackmount 12-port DVI-D, USB, Audio KVM Switches with OSD Support 1920 x 1200 12pcs of NC-6  6ft long KVM cable (Model: NVD1201)

1U Rackmount 12-port DVI-D, USB, Audio KVM Switches with OSD Support 1920 x 1200 12pcs of NC-6 6ft long KVM cable (Model: NVD1201)

NVD1201
  • Overview
  • Download

DVI-D KVM Benefits

  • 12-port DVI-D, USB & Audio KVM
  • DVI-D single link support 1920 x 1200 transmission
  • Support widescreen & native SUN 1152 x 900 resolution
  • Multi-platform for PCs, SUN and Mac G3 / G4 Mac / iMac
  • Hot pluggable, no software or drivers required


Switch Features & Options

  • Support VESA DDC2B emulation & TMDS signal pass-through
  • Port switching via push button & keyboard hotkeys






Ordering Information

Console Local Remote 12-port
1 0 0 NVD1201



KVM Specification

KVM Port
Number of ports: 12
Connector: DVI-D connector
USB 3.0 connector ( combined for keyboard, mouse & audio )
Connectivity: Combo 4-in-1 KVM cable, 6 or 15 feet
Local Console
Graphic Connector: 1 x DVI-D
Resolution: Up to 1920 x 1200
Input device: 2 x USB type A for keyboard & mouse
Audio out: 1 x 3.5mm stereo audio
Management
PC Selection: Front button & hotkey
Compatibility
Multi-platform: Mix PCs, SUN and Mac G3 / G4 Mac / iMac
Support: Windows 7 / Vista / 2003 / XP, Linux, Unix
Power
Input: Auto sensing 100 to 240VAC, 50 / 60 Hz
Consumption: Max. 12 Watt, Standby 5 Watt

Regulatory :
Safety: FCC & CE certified
Environment: RoHS2 & REACH compliant
Environmental
Operating: 0 to 50C
Storage: -5 to 60C
Relative humidity: 90%, non-condensing
Shock: 50G peak acceleration (11ms, half-sine wave)
Vibration: 58-100Hz / 0.98G (11ms / cycle)
Product Information
Dimension (W x D x H): 443 x 171 x 44 mm / 17.4 x 6.7 x 1.73 inch
Net weight: 2.5 kg / 5.5 lb
Packing Information
Dimension (W x D x H): 500 x400 x90 mm / 19.7 x 15.7x3.5 inch
Gross weight: 5.4 kg / 11.9 lb



KVM port connection






Front Panel - Port LED Indications
