17" 1U Rack Mount LCD Monitor Keyobard Console Drawer with VGA and PS/2 Keyboard and Mouse. 19" deep Only (Model: DKP117e)

17" 1U Rack Mount LCD Monitor Keyobard Console Drawer with VGA and PS/2 Keyboard and Mouse. 19" deep Only  (Model: DKP117e)

17" 1U Rack Mount LCD Monitor Keyobard Console Drawer with VGA and PS/2 Keyboard and Mouse. 19" deep Only (Model: DKP117e)

DKP117e
  • Overview
  • Download

Product discontinues. call us 888-483-2418 or click here for replace items.

ROHS compliant NOW is available!!

The KVM Console is an ideal solution for network administration with multiple servers /
platforms. Their 15-inch and 17-inch 19-inch large size TFT LCD color display and
ultra-low-profile compact industrial keyboard / touchpad provide the user-friendliest and most
reliable environment for network administrators. All these functions are integrated in a 19-inch
1U space with rugged construction design to achieve ultra space saving and high reliability for
high quality industrial network applications.


The KVM Console drawers provide superior picture quality and state-of-the-art features
mounted in an industrial grade, rack mount drawer. The drawer forms a rugged enclosure
that protects the monitor from industrial hazards and permits easy access to monitor
controls.


The KVM Console monitors provide flicker-free color images at optimal resolutions. The
monitors’ 0.264mm pixel pitch ensures crisp images with clear definition, even at high
resolutions. The KVM Console monitors are intelligent, microprocessor-based, and have
an ergonomically designed display.


The KVM Console monitors employ the latest in active matrix thin film transistor (TFT)
technology, providing crisp screen images and wide viewing angles. Unlike CRT monitors,
LCD monitors are inherently immune to the magnetic fields commonly found on the plant
floor or communications centers. LCDs are also typically brighter than conventional CRT
technology, making them ideal for the high ambient lighting conditions found in many of
today's factory environments. On-screen menus allow for display adjustments. In
addition, the monitors' Plug-n-Play+ features support Windows 95/98,NT and XP, while a
universal power supply ensures global applicability.


The KVM Console monitors are compatible with most analog RGB (red, green, blue) display
standards, including PS/2, optional for Sun Micro System, Apple Macintosh Centris, Quadra,
and Macintosh II family signals. The LCD monitor is capable of displaying crisp and vibrant color
graphics with VGA, S2GA, XGA (non-interlaced), and most Macintosh compatible color video
cards.

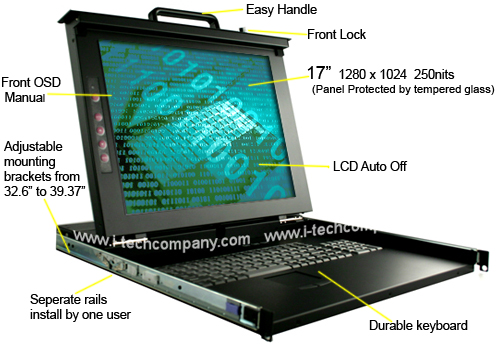

Features:
•  Single Rail easy to install and use
•  Support 15 various keyboard languages
•  Bright Active Matrix TFT Display
•  OSD function (On Screen Display) for LCD display

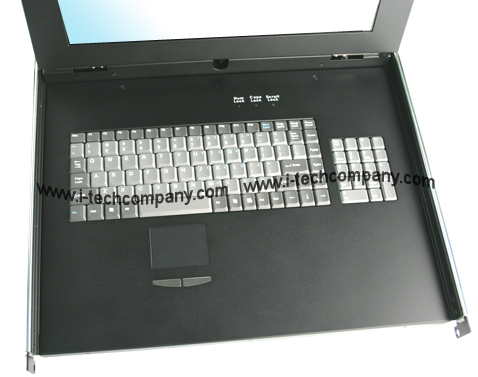

•  Durable keyboards (touchpad or trackball)
•  Panel protected by tempered glass
•  Support USB K/B, touchpad (optional)
•  Audio Function (optional)
•  DC power (optional)
•  Support DVI (optional)

Specification
Model Name DKP117e
Number of ports 1

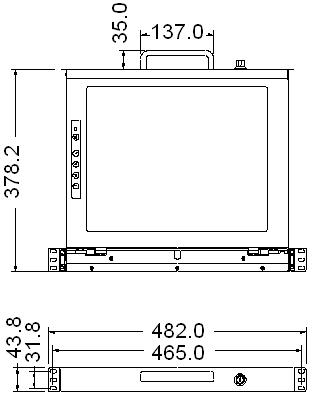

Dimension 447.5x482x44mm/17.6x19.0x1.7in
Package Dimension 565x660x210mm/22.2x26.0x8.3in
Net Weight 13.0Kg / 28.7Lb
Gross Weight 17.0Kg / 37.5Lb
Display Size 17"
Panel Type Active Matrix TFT LCD
Resolution Capabilities Maximum Resolution up to 1280X1024 (SXGA)
Pixel Pitch Supports 0.264mm x0.264mm
Viewing Angle (CR>10) Right-Left view 60 ° ~70 ° (Typ)
Contrast Ratio 450:1
Brightness White 250cd/m2 (Center 1 point Typ)
Back Light Four Lamps for Back Light
Supported Colors 16.2M Colors (6-bit with FRC)
Response Time Rising Time 2ms, Decay Time 14ms
Operating System Dos, Windows (3.1, 9x, 2000, NT4, ME, XP, 2003 Server) Linux, Novell 3.12-6, HP UX, SUN
Multi Platform Support PS/2
System Cable s VGA+2xPS/2 cable
Keyboard Mouse 106 key PS/2 keyboard with touch pad
Sync 45~80KHZ
Power Source 100-240 VAC input
Power Consumption 25W, 19.05W for Panel
Temperature Operate 0 ° ~ 50 ° C / 32 ° ~ 122 ° F,
Storage-20 ° ~ 60 ° C / -4 ° ~ 140 ° F
Humidity 10%~90%RH
Chassis Construction Heavy duty steel materials
Keyboard Language Standard USA , Optional ( UK , German, French, Spanish, Italian, Portuguese, Dutch, Swiss, Belgium , Swedish, Norwegian, Danish, Japan , Taiwan) CE/FCC, UL/CUL/C-Tick
Certification





Come With:
(1) One 1U 19” rack mount console
(2) Two rail with front and rear bracket (Please identify the brackets. Right and left sides are different. For rack depth 19.84" ~ 32.60")

(3) Two long brackets. (Needed for rack depth 32.60" ~ 39.37")

(4) One 1.8M cable( PS/2 mouse, PS/2 keyboard, DB15 VGA)
(5) One power cord
(6) One user manual VCD
(7) One quick installation guide
(8) Two key

(9) Six flat screws. (for rail mount to console body)

(10) Six screws. (for replace long bracket)
