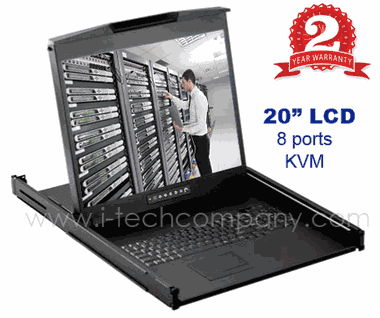

1U Rack Mount 20" LCD Monitor Combo KVM Keyboard Drawer w/ 8-port switches, 2 consoles (1 x local; 1 x IP) (Model: NVP120IP8e) with Touch Pad.

1U Rack Mount 20" LCD Monitor Combo KVM Keyboard Drawer w/ 8-port switches, 2 consoles (1 x local; 1 x IP) (Model: NVP120IP8e) with Touch Pad.
  • Input/Ouput
  • Side Rail
  • Keyboard

1U Rack Mount 20" LCD Monitor Combo KVM Keyboard Drawer w/ 8-port switches, 2 consoles (1 x local; 1 x IP) (Model: NVP120IP8e) with Touch Pad.

NVP120IP8
  • Overview
  • Download
Part no. NVP120IP8e

Video




LCD Drawer & KVM Benefits:
  • 1U 20" LCD console drawer
  • Ultra high resolution 1600 x 1200
  • 104-key keyboard with touchpad
  • Enhanced aesthetics with molded front handle and two point lock

Drawer Features & Options:
  • S-Video + Composite ( BNC ) or Audio input
  • HDMI or DVI-D ( either one )
  • 48V, 24V or 12VDC power

Options:

BNC + S-Video DVI-D DC Power Audio

BNC + S-Video DC Power

DVI-D Audio

Monitor Grade A 20" industrial TFT LCD panel



LCD Specifications:

LCD Panel
Manufacturer
Diagonal size
20.1" TFT
Max. Resolution
1600 x 1200
Brightness (cd/m2)
300
Backlight
CCFL
Colors
16.7M
Contrast Ratio (typ)
800 : 1
Viewing Angle (H/V)
178° x 178°
Active area (mm)
408 x 306
MTBF (hrs)
45,000
Signal input
VGA
Casing Color
Black ( RAL 9005 )
Weight (Single console)
Net
14.5 kgs
(31.9 lbs)
Gross
22 kgs
(48.4 lbs)
Environmental
Operating
0 to 50°C Degree
Storage
-5 to 60°C Degree
Relative humidity
5~90%, non-condensing
Shock
10G acceleration ( 11 ms duration )
Vibration
5~500Hz 1G RMS random vibration
Regulatory
FCC, CE
Power
Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
Max. 48 Watt, Standby 5 Watt
Product Dimensions (Single console)
Product
439.6 x 650 x 44 mm / 23.4 x 25.6 x 1.73 inch
Packing
595 x 860 x 140 mm / 23.4 x 33.9 x 5.5 in

Console Cable:
NE-6
6 feet Combo KVM cable ( bundle )
- VGA + USB or PS/2, server end
- DB15 ( VGA, USB KB & MS ), console port


Keyboard Selection:

Supporting layouts


Dimensions ( with KVM )
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)

Net
Weight
Gross
Weight
Casing Color
439.6 x 650 x 44 mm
17.3 x 25.6 x 1.73 inch
595 x 860 x 140 mm
23.4 x 33.9 x 5.5 inch
15.5 kgs (34.1 lbs)
23.4 kgs (51.5 lbs)
Black (RAL 9005)

KVM Selections :

Matrix CAT6 KVM
Local
Remote
8-port
16-port
32-port
1
1
1
-
NVP120 - MC1116
NVP120 - MC1132
1
1
2
-
NVP120 - MC2116
NVP120 - MC2132
1
1
0
-
NVP120 - MC0116
NVP120 - MC0132
1
2
0
-
NVP120 - MC0216
NVP120 - MC0232
1
3
0
-
NVP120 - MC0316
NVP120 - MC0332

Combo CAT6 KVM
Local
Remote
8-port
16-port
32-port
1
0
1
NVP120 - CIP8
NVP120 - CIP16
NVP120 - CIP32
1
1
0
NVP120 - CCE8
NVP120 - CCE16
NVP120 - CCE32
1
0
0
NVP120 - C8
NVP120 - C16
NVP120 - C32
Cat6 KVM Dongle : IF-DUSB ( VGA-USB ) / IF-DPS2 ( VGA-PS/2 ) / IF-DUSBD ( DVI-USB )

Matrix DB-15 KVM
Local
Remote
8-port
16-port
32-port
1
1
1
NVP120 - M118
NVP120 - M1116
-
1
1
2
NVP120 - M218
NVP120 - M2116
-
1
1
0
NVP120 - M018
NVP120 - M0116
-
1
2
0
NVP120 - M028
NVP120 - M0216
-
1
3
0
NVP120 - M038
NVP120 - M0316
-

Combo DB-15 KVM
Local
Remote
8-port
16-port
32-port
1
0
1
NVP120IP - 82
NVP120IP - 162
-
1
1
0
NVP120 - CE8
NVP120 - CE16
-
1
0
0
NVP120 - S801
NVP120 - S1601
-
Combo DB-15 KVM Cable : NE-6 / 10 / 15 ( 6, 10 or 15 ft )

DVI-D KVM
Local
Remote
12-port
1
0
0
NVP120 - D12
