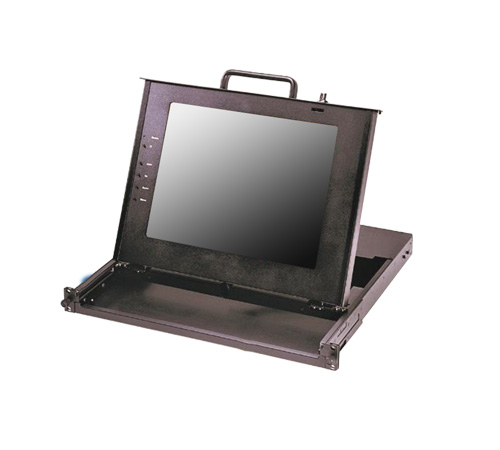

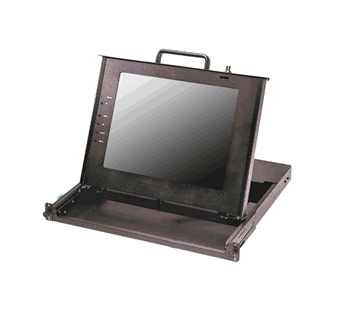

1U 17" Rackmount TFT FULL HD LCD Monitor Drawer, 1920 x 1080 res LCD (Model: ACNPW1730)
1U 17" Rackmount TFT FULL HD LCD Monitor Drawer, 1920 x 1080 res LCD (Model: ACNPW1730)
Main Feature
- Industrial 1U 19" Rackmount LCD monitor drawer
- Available in 17" and 19" display panel size with Full-HD resolution
- Temper glass protection
- Low power consumption
- Short depth designs
- OSD menu for display setting
- Optional DVI-D input
X
Inquiry/Quote Request
- Specifications
- Download
- Contact Sales
| Display size | 19" |
| Resolution | 1920 x 1080 |
| Pixel pitch | 0.213 x 0.213mm |
| Response (Rise/Decay) | 10ms / 10ms |
| Color | 16.7M (6-bit with FRC) |
| Contrast | 1000 : 1 |
| Brightness | White 350 cd/m2 |
| View angle (H/V) | 178/178 |
| Backlight | Dual lamps |
| Aspect ratio | 16:9 |
| Power consumption | 16.5W |
| Operating temp. | 0°C ~ 50oC / 32oF ~ 122°F |
| Storage temp. | -20°C ~ 60oC / -4°F ~ 140oF |
| Relative humidity | 0% ~ 95% RH, non-condensing |
| Dimension (WxDxH) | 482 x 508.8 x 43mm |
| Gross Weight | 18kg |
| Sales Inquiry | ||
 |
Sales Phone: | 888-483-2418/Press 2 510-226-9226/Press 2 |
 |
Email: | sales@itechlcd.com |
