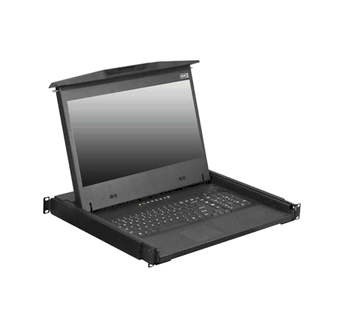

1U 17.3" Ultra Short Depth LCD Console Drawer w/ 4K Native Resolution 400mm Chassis Deep w/ 19.1lb only (Model: NVP1417K)

1U 17.3" Ultra Short Depth LCD Console Drawer with 4K 3840x2160 Native Resolution 400mm Chassis Deep with 19.1lb only

1U 17.3" Ultra Short Depth LCD Console Drawer with 4K 3840x2160 Native Resolution 400mm Chassis Deep with 19.1lb only

Main Feature

    • 1U 17.3" 4K LCD console drawer
    • 3840 x 2160 native resolution / 16.7M colors ( 8-bit )
    • 1920 x 1080 & 1920 x 1200 resolution support
    • DB-15 USB KB / MS
    • Display port 1.2 video input
    • Ideal for open rack / short depth rack
Inquiry/Quote Request
NVP1417K
  • Overview
  • Specifications
  • Ordering Information
  • Download
  • Contact Sales

Features:

  • 1U 17.3" 4K LCD console drawer
  • 3840 x 2160 native resolution / 16.7M colors ( 8-bit )
  • 1920 x 1080 & 1920 x 1200 resolution support
  • DB-15 USB KB / MS
  • Display port 1.2 video input
  • Ideal for open rack / short depth rack
  • 104-key keyboard with either touchpad or trackball
  • Built-in dual stereo speakers
  • One Man installation design
  • Enhanced aesthetics with new molded front panel and 2-point lock
  • 2-year standard warranty ( upgradable up to 5 years )

Options:

  • HDMI 2.0 video input
  • 3G / HD / SD-SDI Broadcast-grade input
  • DC power : 12V / 24V / 48V / 125V
  • MAC or SUN Micro keyboard options available
  • 2-post rack mounting brackets ( ORB-2.1 )
  • Touchscreen : Resistive 1-pt
Console Port
Video input attached 6ft DP cable Display port 1.2
KB / MS Drawer end : DB-15 ( USB KB / MS )
bundled 6ft cable : EKC-2 Server end : USB type A

LCD Panel
Panel size ( diagonal ) 17.3"
Native resolution 3840 x 2160
Brightness ( cd/m² ) 400
Contrast ratio ( typ. ) 1000 : 1
Colors 16.7 M, 8-bit
Viewing angle ( L/R/U/D ) 89/89/89/89
Response time ( ms ) 30
Dot pitch ( mm ) 0.0995
Display area ( mm ) 382.12H x 214.94V
Surface treatment Anti-glare
Surface hardness 3H
Backlight type LED
MTBF (hrs) 20,000

Video Option
Digital HDMI HDMI 2.0 / HDCP 2.2

Mounting Distance
Single console drawer 410 ~ 640 mm
16.1 ~ 25.2 inch
Console w/ KVM drawer 410 ~ 800 mm
16.1 ~ 31.5 inch

Power
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
(console / KVM)		 Screen on Max. 29W / Max. 38W
Power saving mode Max. 9W / Max. 18W
Power button on Max. 2W / Nil

Environment
Operating temp. 0   to 55°C degree
Storage temp. -20 to 60°C degree
Operating humidity 20~90%, non-condensing
Storage humidity 5 ~90%, non-condensing
Operating altitude 16,000 ft
Non-operating altitude 40,000 ft
Shock 10G acceleration ( 11ms duration )
Vibration 10~300Hz 0.5G RMS random vibration

Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant

Physical
Dimensions ( W x D x H ) Single console 442 x 480 x 44 mm /17.4 x 18.9 x 1.73 inch
Console w/ KVM 442 x 580 x 44 mm /17.4 x 22.8 x 1.73 inch
Packing ( W x D x H ) Single console / Console w/ KVM 590 x 622 x 140 mm /23.2 x 24.5 x 5.5 inch
Net weight Single console 8.7 kg / 19.1 lb
Console w/ KVM 9.5 kg / 20.9 lb
Gross Weight Single console 13.7 kg / 30.2 lb
Console w/ KVM 15.4 kg / 33.9 lb
For keyboard option add (e) touchpad or (b) trackball at the end of the model no.
Sample: NVP1417K-MC1116e

Matrix Cat6 KVM Local Remote IP 8-port 16-port 32-port
1 1 1 - NVP1417K-MC1116 NVP1417K-MC1132
1 1 2 - NVP1417K-MC2116 NVP1417K-MC2132
1 1 0 - NVP1417K-MC0116 NVP1417K-MC0132
1 2 0 - NVP1417K-MC0216 NVP1417K-MC0232
1 3 0 - NVP1417K-MC0316 NVP1417K-MC0332


Combo Cat6 KVM Local Remote IP 8-port 16-port 32-port
1 0 1 NVP1417K-CIP8 NVP1417K-CIP16 NVP1417K-CIP32
1 1 0 NVP1417K-CCE8 NVP1417K-CCE16 NVP1417K-CCE32
1 0 0 NVP1417K-C8 NVP1417K-C16 NVP1417K-C32
Cat6 KVM Dongle : DG-100S ( VGA-USB ) / DG-100 ( VGA-PS/2 ) / DG-100SD ( DVI-USB )


Matrix DB-15 KVM Local Remote IP 8-port 16-port 32-port
1 1 1 NVP1417K-M118 NVP1417K-M1116 -
1 1 2 NVP1417K-M218 NVP1417K-M2116 -
1 1 0 NVP1417K-M018 NVP1417K-M0116 -
1 2 0 NVP1417K-M028 NVP1417K-M0216 -
1 3 0 NVP1417K-M038 NVP1417K-M0316 -


Combo DB-15 KVM Local Remote IP 8-port 16-port 32-port
1 0 1 NVP1417K-IP8 NVP1417K-IP16 -
1 1 0 NVP1417K-8 NVP1417K-16 -
1 0 0 NVP1417K-S801 NVP1417K-S1601 -
Combo DB-15 KVM Cable : NE-6 / 10 / 15 ( 6, 10 or 15 ft )


DVI-D KVM Local Remote IP 12-port - -
1 0 0 NVP1417K-12D - -


USB-Hub DB-15 KVM Local Remote IP 8-port 16-port 32-port
1 0 1 NVP1417K-IPB8 NVP1417K-IPB16 -
1 1 0 NVP1417K-B82 NVP1417K-B162 -
1 0 0 NVP1417K-B8 NVP1417K-B16 -
