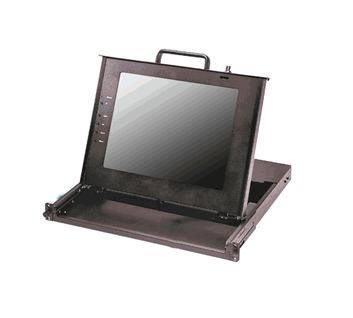

1U 17" Rackmount TFT LCD Monitor Drawer 1280 x 1024 res LCD (Model: ACNP1700)

1U 17" Rackmount TFT LCD Monitor Drawer 1280 x 1024 res LCD (Model: ACNP1700)

1U 17" Rackmount TFT LCD Monitor Drawer 1280 x 1024 res LCD (Model: ACNP1700)

Main Feature

    • Industrial 1U 19" Rackmount LCD monitor drawer
    • Available in 15", 17" and 19" display panel size
    • Temper glass protection
    • Low power consumption
    • Short depth designs
    • OSD menu for display setting
    • Optional DVI-D input
    • Optional Touchscreen function
ACNP1700
  • Specifications
  • Download
  • Contact Sales
Display size 17"
Resolution 1280 x 1024
Pixel pitch 0.264 x 0.264mm
Response (Rise/Decay) 3.8ms / 1.2ms
Color 16.7M (6-bit with FRC)
Contrast 1000 : 1
Brightness White 250 cd/m2
View angle (H/V) 170/160
Backlight Dual lamp
Aspect ratio 4:3
Touchscreen 5-wire resistive
Power consumption 10W
Operating temp. 0°C ~ 50°C / 32°F ~ 122°F
Storage temp. -20°C ~ 60°C / -4°F ~ 140°F
Relative humidity 0% ~ 95% RH, non-condensing
Dimension (WxDxH) 482 x 447.3 x 43mm
Gross Weight 14.6kg
