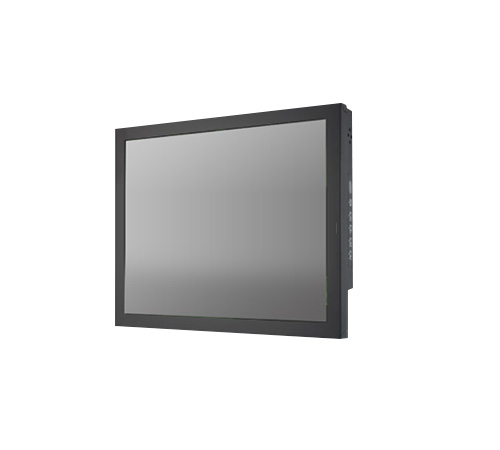

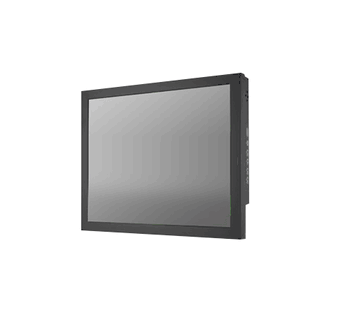

19" 1000nits Military Grade Chassis LCD Monitor VGA, DVI, HDMI Comply MIL-STD-810G (Model: EMCM1900HBWV-DC-H)

Military Grade Chassis, 19" LCD Monitor, 1280x1024, LED-1000nits, WV(178°/178° MVA), VGA, DVI, HDMI Comply MIL-STD-810G vibration and shock(9G 11ms shock test.) Shock MIL S 901D (Power 9~36V DC Terminal block)

Modularize mechanical design provides flexible product configuration and easy maintenance
Optional build-in touch screen for interactive application
Available with auto-brightness sensor offers application in day and night
VGA connector with optional AV,SV,AV-Looping
Comply MIL-STD-810G vibration and shock (9G 11ms shock test.)
Shock - MIL S 901D
Optional: MIL connector / M12 connector / Plastic IP69 water resistance connector

Cell Type	TFT LCD
Glass Surface	Black Anti-Glare, low reflection coating
Aspect Ratio	5 : 4
Size	19" viewable diagonal area
Active Area	376.3(H) x 301.1(V) mm
Pixel Pitch	0.294(H) x 0.294(V) mm
Native Resolution	1280(H) x 1024(V)
Colors	16.7 M
Brightness	1000
Contrast	800 : 1
Response Time	≤ 5 ms
Viewing Angle (typical)	H. 178°, V. 178°
Light Source	LED backlight, Long life, 35,000 hrs (typ)

Input Sources
PC System	Signal	Analog RGB (0.7/1.0 V, 75 ohms)
	Sync	Separate Sync, Composite Sync, Sync On Green
	Frequency	F: 30 - 82Khz , F: 50 -75Hz
Audio System	2W speaker	x 2

CERTIFICATION
FCC , CE
INPUT TERMINALS
1 x VGA, 1 x DVI, 1 x HDMI
CONVENIENT FEATURES
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
POWER
9~36V DC
POWER CONSUMPTION
Operation / Power Saving	33 watt , < 2 watt (Support DPMS)
OPERATING CONDITION
Temperature / Humidity	0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
STORAGE CONDITION
Temperature / Humidity	-20°C ~ 60°C (-4°F ~ 140°F) , 10% ~ 90% (no condensation)
DIMENSIONS
Physical	<nil>
Carton	W x H x D = TBD
WEIGHT
N.W. / G.W.	6 Kgs/7 Kgs
CONTAINER LOADED
20ft / 40ft / 40ft HQ	TBD (Sets , By pallet)
