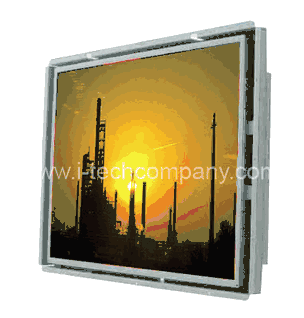

19" Open Frame LCD Monitor with VGA (Model:WOP1900M1)

19" Open Frame LCD Monitor with VGA (Model:WOP1900M1)

19" Open Frame LCD Monitor with VGA (Model:WOP1900M1)

WOP1900M1
  • Overview
  • Download


Technical Description
Model Name WOP1900M1
Screen Size (diagonal) 19"
Active Display Area (mm) 376.32(H)x301.06(V)
Pixel Pitch (mm) 0.294(H)x0.294(V)
Native Display Resolution (pixels) 1280x1024
Brightness (CD/m^2) 250(typ.)
Contrast Ratio 1000:1
Viewing Angles (L/R/U/D) -85~85(H);-80~80(V)
Number of Colors 16.7M
Optional Touch Screen Resistive, Capacitive, SAW
Power Information
Power Source 12V DC in, with External AC-DC Adapter(100~240V)
Power Consumption(Normal operation) 27 W typical, normal operation
Power Input VESA DPMS Compliant
Display Signals
Plug & Play VESA DDC 1/2B
Video Input (optional) S-Video,Composite
DVI Input (optional) Yes


*Due to Panel material's deviation, different panel supplier will set different specific variance range to optical characteristics. The factors of time used, Lamp current, Ambient temperature will influence the optical measurements.
