JPD1900-KIT-A
  • Overview
  • Download

Features

  • Sunlight Readable
  • High Contrast Ratio
  • Wide Temperature
  • Low Power Consumption
  • Optional Touch Systems
  • VGA to SXGA

Specifications

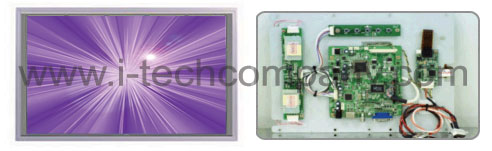

Display Type LCD + LED Driver + AD/OSD Board
LCD Display 19" TFT LCD Module
Base Panel Supplier AUO
Base Panel Model M190EG02
Display Color 6-bits, 16.7M colors
Display Area 376.320 x 301.06 mm
Brightness 1,000 nits
Resolution 1280 x 1024 (SXGA)
Contrast Ratio 1000 : 1
Pixel Pitch (mm) 0.294 x 0.294
Viewing Angle 80º/80º(H) 80º/80º(V)
Response Time 5ms (Tr+Tf)
Sync LVDS
Power Consumption TBD
Temperature Operation 0°C~+50°C
Storage -20°C~+60°C
Dimension(WxHxD)mm 396.00 x 324.00 x 16.50
Lamp Lifetime (HR) 50,000
Control(AD) Board (Optional) N/A
OSD Button N/A
OSD Menu Brightness Contrast H/V Position Color Phase Clock…
LED Driver JL190
Weight 2,100 g
Optional Transflective tech
Glass Bonding
Touch
Specifications are subject to change without notice
Control(AD) Board (Optional) Standard VGA + DVI + Audio(Option)
Option VGA + DVI + Composite + S-Video + Audio(Option)
OSD Button 5 Key Power Switch Select(+,-) Down Up Menu
