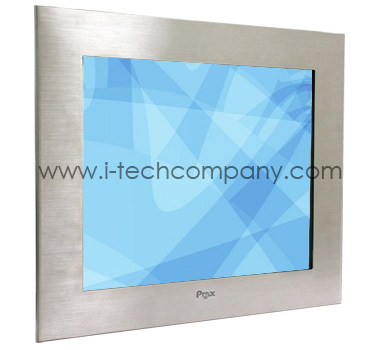

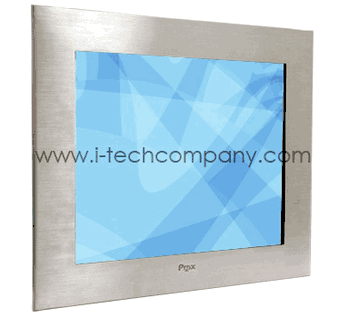

17" Fanless and Slim Intel Atom Touch Panel PC (Model: PPC-7917F)

17" Fanless and Slim Intel Atom Touch Panel PC (Model: PPC-7917F)

17" Fanless and Slim Intel Atom Touch Panel PC (Model: PPC-7917F)

PPC-7917F
  • Overview
  • Specifications
  • Download
Features
Intel Atom N270 processor up to 1.6GHz
Easy switchable front panel without changing rear computing box
Modulized designed for easy maintenance
LCD TFT 1280 x 1024 (SXGA) / 1024 x 768 (XGA)
With rugged die-cast housing design with a NEMA4/IP64 compliant front Panel
Built-in CF card interface (IDE interface for OS booting)
Systems
CPU Support Intel Atom N270 CPU on board
Chipset Intel 945GSE+ICH7M
Memory Support 1 x 200pin DDR2 SO-DIMM, supports DDR2 400/533 UP TO 2GB
Max. System Memory 2GB
Front Bezel Aluminum
Open Frame Yes
Waterproof Level IP65
Sound AC'97 Codec
Power Supply DC 24Vin 110W power support
Construction Eelectro Galvanized Steel Chassis
Wall Mount Type VESA standard
Dimension (WxHxD) 450 x 380 x 83.8 mm
System Weight 9.23kg
Certificate CE/ FCC/ UL

I/O Ports
USB 4 x USB 2.0
KB / Mouse 2
Audio 1 x Line in / Line out / MIC in
Serial Port 4 x COM ports
Parallel Port 1 x Parallel Port
Digital I/O 8 in/ 8out (share with parallel port)
LAN 2
VGA 1
Drive Bays 1 x slim 2.5"HDD, 1 x slim CD ROM, 1 x CF Slot on board (IDE Interface)

Display
LCD SXGA
Touch Screen 5W Analog resistive (USB interface)
Max. Resolution 1280 x 1024
Pixel Pitch 0.264 x 0.264
Brightness 300cd/m

Environment
Operation Temperature 0陡40蚓(32陡104蚌)
Storage Temperature -20陡60蚓(-4陡140蚌)
Humidity 20~90%
