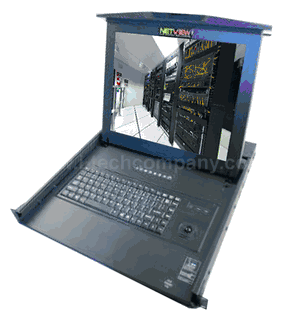

1U 17" widescreen LCD console drawer with 3 buttons trackball on the Right hand side (Model: NW117HDb-RC02)

1U 17" widescreen LCD console drawer with 3 buttons trackball on the Right hand side (Model: NW117HDb-RC02)

1U 17" widescreen LCD console drawer with 3 buttons trackball on the Right hand side (Model: NW117HDb-RC02)

NW117HDb-RC02
  • Overview
  • Download


Drawer Features & Display Benefits


  • resolution: 1920 x 1080
  • VGA + DVI-D + HDMI (speaker only support in HDMI)
  • 13MB mounting bracket
  • 2009 style with 2-point lock on front panel
  • b notebook keyboard with 88 keys only
  • unit depth: 440mm = 17.33" (with external power)
  • Add the plastic cover (1.0mm thick) using double tape to secure on the LCD original sliver panel frame

Options:
  • 3G / HD / SD-SDI Broadcast-grade input
  • Audio input
  • 48V, 24V or 12VDC input

Specifications:

LCD Panel
Diagonal size

17.3" widescreen TFT

Max. Resolution

1920 x 1080

Brightness (cd/m2)

300

Backlight

LED

Colors

1.07 Billion, 10-bit

Contrast Ratio (typ)

600 : 1

Viewing Angle (H/V)

178° x 178°

Active area (mm)

382 x 215

MTBF (hrs)

20,000

Signal input

VGA,  DVI-D, HDMI

Casing Color

Black ( PAL 9005 )

Weight ( Single console )
Net

15 kgs
( 33 lbs )

Gross

19 kgs
( 42 lbs )

Environmental
Operating

0 to 50°C Degree

Storage

-5 to 60°C Degree

Relative humidity

5~90%, non-condensing

Shock

10G acceleration ( 11 ms duration )

Vibration

5~500Hz 1G RMS random vibration

Regulatory
Safety

FCC & CE certified

Environmental

RoHS2 & REACH compliant

Power
Input

Auto-sensing 100 to 240VAC, 50 / 60Hz

Consumption

Max. 48 Watt, Standby 5 Watt

Product Dimensions ( Single console )
Product

441.6 x 440 x 44 mm / 17.4 x 17.33 x 1.73 inch

Packing

590 x 535 x 140 mm / 23.2 x 21 x 5.5 inch




Console Cable

NC-6
6 feet DVI-D console cable ( bundle )
- DVI-D + USB, server end
- DVI-D + DB15 ( USB KB & MS ), console port
NB-6
6 feet VGA console cable ( alternative )
- VGA + USB, server end
- DB15 ( VGA, USB KB & MS ), console port
