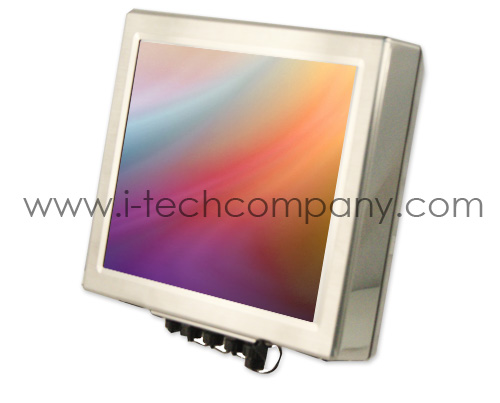

  • ISO Front View
  • Side View
  • Back View
  • Ports
  • Ports
  • Accessories

17" Full NEMA 4X Panel PC, 1280x1024, CPU C2D M 1.83GHz, GME965+ICH8M, 110/220V AV Input, Dual Gigabit LAN, (Optional ACP Enable, CF) (Model: APC1700D-SIP-TR)

APC1700D-SIP-TR
  • Overview
  • Download

Processing Power

The APC1700D is the latest in low voltage fanless panel computing. Designed from the ground up to meet the challenges of the Industrial world, this new 17 inch panel computer features the 1.83GHz Core 2 Duo Mobile processor, excellent COM port connectability and dual gigabit ethernet.

5-wire Touchscreen

Available with a 5-wire resistive touchscreen, this option increases operator accuracy and efficiency. Arista's touchscreen's are constructed with the harshest environments in mind. They typically deliver drift-free operation for a lifetime of 35 million finger touches with a long-life 490,000 hours MTBF.

Panel Mount

The APC1700D is designed to be panel mounted. The unit comes with 13 mounting screw locations yielding NEMA sealability when properly installed. Using an industry standard cutout.

Connectability

The APC1700D features 1 x USB 2.0 port,2 x RS-232 COM ports(Optional), 1x Mini PCI Expansion slot, 2 x KB/MS PS/2 ports(Optional).

LCD Panel
Display size ( Diagonal ) 17 inch
Resolution 1280 x 1024
Backlight Lifetime 50,000 hours
Visual Characteristics
Colors 16 million
Aspect ratio 4 : 3
Viewing angle (V/H) 140° / 140°
Response time (Typical) 12 ms
Pixel Pitch (mm) 0.264 x 0.264
Contrast ratio 800 : 1
Brightness 300 nits
Touch Screen
Technology 5 Wire Resistive
Touch rating 35 Million Touches
MTBF 490,000 hours
Interface RS-232
Driver WinXP Pro
System
CPU Core 2 Duo Mobile
Chipset
GME965 + ICH8M
Memory
Up to 4GB
Display
GME965 GMA X3100
VRAM
DVMT 4.0 up to 384MB video memory
Storage Option
1 x 2.5" SATA HDD
Compact Flash
Optional CF
Keyboard/Mouse
2 x PS/2 Connectors(Optional)
Audio
N/A
Watchdog Timer
Programmable 1~255 sec
Expansion Slot 1 x Mini PCI
I/O Communication
USB Port
1 x USB 2.0
Serial Port
2 x RS-232(Optional)
IEEE 1394
N/A
LAN
Dual Gigabit LAN
Parallel N/A
OS Support
OS Support WinXP Pro
Power/Thermal Specs.
Power Requirement ( Max )
120VAC/0.96A, 24VDC/4.8A
Power Consumption ( Max )
130 W
Heat Dissipation 442 BTU/hr
Physical Information
Mounting

Pedestal, VESA, Wall and Ceiling mount, Benchtop
Net Weight
48.501 lbs / 22 kg
Physical Dimension (L x W x H) 15.88 x 14.07 x 4.36 inch
403.35 x 357.38 x 110.74 mm
Environmental
Operating Temp
0°C - 50°C (32°F - 122°F)
Storage Temp
-20°C - 60°C (-4°F - 140°F)
Relative Humidity
0% - 95% ( non-condensing)
Rating NEMA 4X
Accessories Options
XPP Windows XP Pro Operating System
XPe Windows XP Embedded Operationg System (compatible w/ APC1700D, APC1700D, APC1900VA)
A24DC 24 VDC Input power cord
AWUSB Waterpoof USB (1m)
AW22 Waterpoof 22 pin Universal Cable (1.1m)
AWRJ45 Waterpoof RJ45 Cable (3m)
APA150 110-220VAC Input, 24VDC Output 150W Power Adaptor
APAM PSA-150A-024 Power Adaptor Mounting Bracket
