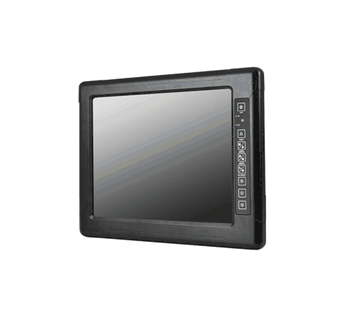

15" Ruggedized Military LCD Full IP65 Dust/Water Proof Enclosures (Except I/O parts) with 5 Wire Resistive Touch (Model: WMRM1500HBV2-TR)

15" Ruggedized Military LCD Full IP65 Dust/Water Proof Enclosures (Except I/O parts) with 5 Wire Resistive Touch (Model: WMRM1500HBV2-TR)

15" Ruggedized Military LCD Full IP65 Dust/Water Proof Enclosures (Except I/O parts) with 5 Wire Resistive Touch (Model: WMRM1500HBV2-TR)

Main Feature

    • High Quality 15" XGA Panel, 1024*768 resolution
    • Aluminum Housing with Anti-Corrosion Treatments
    • Optical Bonding with Anti-moisture Treatment
    • Anti-Shock and Vibration Standard by MIL- STD-810F
    • 5 Wire Resistive Touch/ Anti-Reflection Protection Glass(Optional)
    • Wide Range 9 to 36V DC Input Acceptable(Optional)
    • Extended Wide Temperature Range(Optional)
WMRM1500HBV2-TR
  • Specifications
  • Download
  • Contact Sales
Display Specifications
Size 15 inch
Resolution 1024x768 pixels
Brightness 800 (cd/m )
Touch 5 Wire Resistive (Optional)
Glass AR Glass (Default)

In front Control
Control Button Power On/ Off, Menu, Auto, Brightness up& down,
LED adjustment
Led indicator Power On/ Off
Display Sleep

Mechanical and Environment
Dimensions (W x L x H) 398 mm x 308 mm x 58mm
Operation Temperature -20 deg.C to 60 deg.C
Operation Humidity 10% to 95% (non condensing)
Shock* Operating:40g for 11ms
Vibration* Operating: 1.62/2.02/2.20g rms for XYZ / 5-
500Hz

Environmental (MIL-STD 810F/G Compliance)
Vibration MIL-STD-810F/G Method 514.5
Humidity MIL-STD-810F/G Method 507.4
Transit Drop MIL-STD-810F/G Method 516.5
High Temperature Storage:MIL-STD-810F/G Method501.4
Operation:MIL-STD-810F/G Method501.4
Low Temperature Storage:MIL-STD-810F/G Method502.4
Operation:MIL-STD-810F/G Method502.4

Environmental (MIL-STD 416E/F Compliance)
RE RE 101 / RE 102
CE CE 101 / CE 102
Optional with EMI Glass / Touch
CS RS 101 /RS 103
CS CS 101 / CS 106 / CS 109 / CS 114 CS 115 / Cs116

I/O Spec
Connector type Mil Circular type
VGA JY27466T11F35PN
USB/RS232 JY27466T11F35PN
Power (9~36V DC) JY27466T09F98PN
Wide Voltage 9~36V (Isolated Power)
Optional Touch Resistive
AR glass Yes(default)
EMI glass/Touch By Request
