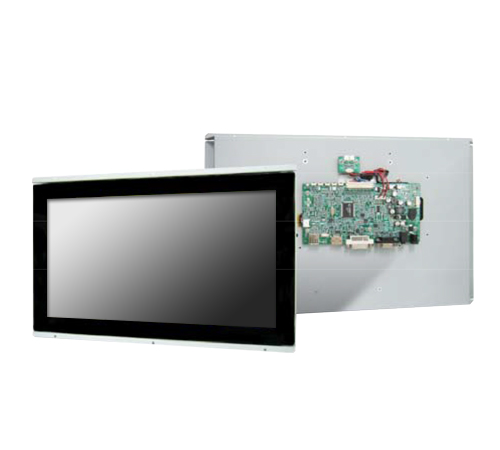

Wide 15.6" Open Frame (1366x768) Digital TFT LCD Aspect Ratio: 16:9, Input Signal VGA / DVI-D/ HDMI 1.3a with Projected Capacitive Touch (Model: FCOPW1560-PCAP)

Wide 15.6" Open Frame (1366x768) Digital TFT LCD Aspect Ratio: 16:9, Input Signal VGA / DVI-D/ HDMI 1.3a with Projected Capacitive Touch (Model: FCOPW1560-PCAP)

Wide 15.6" Open Frame (1366x768) Digital TFT LCD Aspect Ratio: 16:9, Input Signal VGA / DVI-D/ HDMI 1.3a with Projected Capacitive Touch (Model: FCOPW1560-PCAP)

Main Feature

    • 15.6" (1366x768) Digital TFT LCD
    • Aspect Ratio: 16:9
    • Input Signal VGA / DVI-D/ HDMI 1.3a
    • Maximum Support Resolution 1920x1080
    • Stereo Audio Amplifier, Output 2W@4Ω Speaker
    • Audio Line-In
    • Projected Capacitive Touch
    • 5 Key Buttons Control
    • 9 Language OSD Menu
    • LED Backlight
    • Single Operation Voltage +12V
FCOPW1560-PCAP
  • Specifications
  • Download
  • Contact Sales
LCD
Panel Size 15.6"
Resolution (Pixels) 1366x768
Color 16.7M
Luminance 240 cd/㎡
Contrast Ratio 500
View Angle 80/80/80/80
LED Life Time 50K (Min)
Power Requirement
Power Input (DC Jack 2.1ψ) +12 VDC
Power Consumption@+12V 12.7Watts (@Without Amplifier)
Touch Screen
Resistive Type USB / RS232 Interface
Resistive Type Support OS Windows / Linux / DOS / Mac / QNX
PCAP Type USB Interface
Projected Capacitive Touch Support OS Windows / Linux
Controls
Key 5 Buttons
Serial Remote Control UART / RS232 (Option)
Input Signal
VGA D-Sub15
DVI DVI-D
HDMI 1.3a
Audio
Amplifier 1W@8Ω / 2W@4Ω
Line-In Stereo Input Phone Jackψ3.5
Environment
Temperature Range
Operating -0 ~ +60°C
Storage -20 ~ +60°C
High Temperature & High Humidity (Non-condensing)
Operating +50°C / 80%
