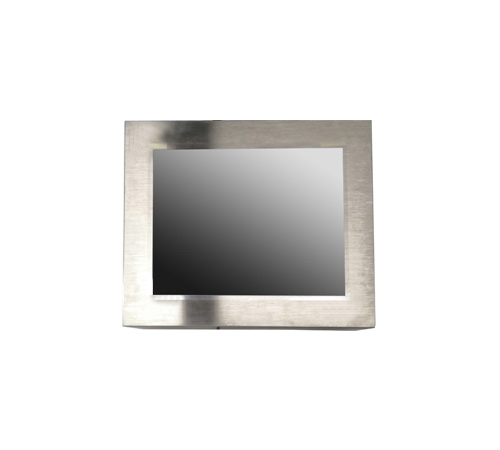

15" Full IP66/NEMA4X Stainless Steel Chassis w/ Resistive Touch, JIMB-1900-2L/J1900, 4GB, SSD 256GB, Win 10 (Model: CCH1500-J-SIP-TR-V4)
15" 250nits, 1024x768, Stainless steel 304 enclosures with Full IP66 / VESA mount with Resistive Touch, JIMB-1900-2L / J1900 (2M Cache, up to 2.42GHz Intel Celeron Quad-Core Processor) / RAM 4GB / SSD 256GB, Win 10 IoT 2019 LTSC
CCH1500-J-SIP-TR-V4
- Overview
- Specifications
- Download
| DISPLAY |
Viewing Size Image |
15" |
| Active Display Area (mm) |
305.50 (H) x 229.50 (V) |
| Pixel Pitch (mm) |
0.297 (H) x 0.297(V) |
| Resolution |
1024 x 768 |
| Contrast Ratio |
700 : 1 (typ.) |
| Color |
16.2M( 6bits+FRC) |
| Brightness |
250nits |
| Viewing Angle |
-70~70 (H) ; -60~60 (V) |
| Recommended Resolution |
1024 x 768 @ 60H, 75Hz |
| POWER |
Source |
12V DC with external power adapter |
| Consumption |
25W typical, normal operation |
| Management |
VESA DPMS Compliant |
|
| |
Motherboard Specs |
- Intel Celeron J1900 (2.0 GHz) quad-core processor
- Support DirectX 11 3D Graphics Acceleration
- Support DDR3L 1333
- Integrated HD Audio CODEC
- Support 2*PCI Express Gigabit LAN
- Support Power Onboard(12V)
- Onboard 1* MiniPCI-E connector
- Onboard 1* M.2 connector(2242/2260)
- 2 Phase CPU Power Support
- Support 1* USB3.0, 9* USB2.0
- Support 12* COM(COM1/2 Support RS232/422/485)
- Support Amplifier function(3W)
- Support Thunder Protection Function
- Thin mini ITX Form Factor(170mm X170mm)
|
| |
| CPU-Chipset |
INTEL Celeron J1900 (2.0 GHz) Quad-Core Processor |
| I.O Chipset |
2 Phase CPU Power Support |
| FINTEK F81866AD-I |
| Memory |
1*SO-DIMM slot |
| Support DDR3L 1333 |
| Max. capacity of system memory up to 8GB |
| Expansion Slots |
1* Mini PCI-E connector |
| Storage |
1* Serial ATA2 3Gb/s connector |
| 1* M.2 Connector(2242/2260) |
| Audio |
ALC662 Audio CODEC |
| Ethernet LAN |
HD Audio CODEC
REALTEK® RTL8111G Chip |
| LVDS |
2* PCI Express Gigabit LAN |
| Onboard 24-bit Dual channel(Co-Lay EDP) |
| USB |
1* USB3.0 Port |
| 9* USB 2.0 (3 distribute in back panel, 6 distribute in mid-board) |
| Special Features |
Support CPU Smart Fan |
| Support Watch dog Technology |
| Support GPIO Technology |
| Support VGA header |
| Support HDIM header |
| Support Power On board |
| Support Amplifier function(3W) |
| Support 2*RS422/RS485/RS232 COM ports |
| COM 1/COM2 Support 5V/12V TTL |
| Thunder Protection Function |
| All Solid Capacitor design |
| All Power Pack MOSFET design |
| Back Panel I / O |
2* USB3.0 port
2* USB 2.0 ports
2* RJ-45 ports
1* Line-out connector
1* MIC
1* VGA port (Max. Resolution: 1920*1200@60Hz)
1* 12V DC in |
|
| |
| Internal I / O |
3* USB 2.0 headers for 6 USB 2.0 ports |
| 1 * CPU / Chassis Fan connectors |
| 12* COM headers(COM1/COM2 For RS422/RS485/RS232 and TTL ) |
| 1* Parallel header |
| 1* PS2/KB header |
| 1* 4-pin ATX 12V Power connector |
| 1* 4-pin SATA Power connector |
| 1* 12-pin VGA header (Max. Resolution: 1920*1200@60Hz) |
| 1* 20-pin HDMI header (Max. Resolution: 1920*1200@60Hz) |
| 1* 24-bit Dual Channel LVDS header (Max. Resolution: 1920*1200@60Hz) |
| 1* GPIO header |
| 1* Mini PCI-e connector |
| 1* M.2 Connector(2242/2260) |
| 1* SATA Connector |
| 1* Speaker header(Amplifier function 3W) |
| 1* Front panel header |
| 1* SIM Card socket |
| BIOS |
AMI 64MB SPI ROM |
| Temperature |
Operating: 0°C ~ 70°C
Storage: -20°C ~ 85°C |
| Form Factor |
Thin mini ITX Form Factor(170mm X 170mm) |
| Accessory |
SATA Cable
SATA Power cord
COM Cable
I/O Shield |
| OS Support |
Windows 7 (32/64-bit), Windows 8.1 (32/64-bit), Windows 10 (32/64 Bit)
Widows Server2012R2. Windows Server 2016, Windows Server 2019
Linux: Cent OS, Debian, Fedora, OpenSUSE, Ubuntu, pfSence, FreeNAS, RedHat |
|
