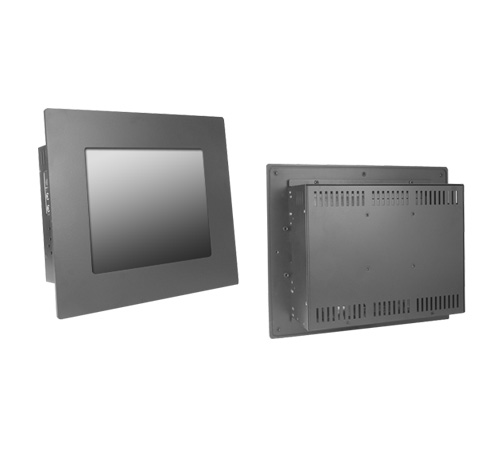

IP65 Front Panel PC (Metal-3mm), 10.4" LCD monitor, 800x600, LED-350nits, Rear OSD, including rear screw/Clamp/VESA Mount, WT(-30~70C), 12VDC-IN w/Adapter with 5 Wire Resistive Touch Screen + MS-98F5 ( J1900 ) / RAM 4GB ( 0C~70C ) / SSD 256GB ( 0C ~70C )(Model: CPM01040WT-J-TR)

IP65 Front Panel PC (Metal-3mm), 10.4" LCD monitor, 800x600, LED-350nits, Rear OSD, including rear screw/Clamp/VESA Mount, WT(-30~70C), 12VDC-IN w/Adapter with 5 Wire Resistive Touch Screen + MS-98F5 ( J1900 ) / RAM 4GB ( 0C~70C ) / SSD 256GB ( 0C ~70C )(Model: CPM01040WT-J-TR)

IP65 Front Panel PC (Metal-3mm), 10.4" LCD monitor, 800x600, LED-350nits, Rear OSD, including rear screw/Clamp/VESA Mount, WT(-30~70C), 12VDC-IN w/Adapter with 5 Wire Resistive Touch Screen + MS-98F5 ( J1900 ) / RAM 4GB ( 0C~70C ) / SSD 256GB ( 0C ~70C )(Model: CPM01040WT-J-TR)

Main Feature

    • Modularize mechanical design provides flexible product configuration and easy maintenance
    • Optional build-in touch screen for interactive application
    • Intel Atom Baytrail-M/D Chipset
    • Intel Celeron J1900
    • Single Channel DDR3L 1333 MHz SDRAM
    • 1 x HDMI, 1 x COM, 2 x USB, 2 x LAN
CPM01040WT-J-TR
  • Specifications
  • Download
  • Contact Sales
Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size 4 : 3 / 10.4" viewable diagonal area
Active Area / Pixel Pitch 211.2(H) x 158.4(V) mm / 0.264(H) x 0.264(V) mm
Native Resolution / Colors 800(H) x 600(V) / 262 K
Brightness / Contrast 350 cd/m2 (typ) / 600 : 1
Response Time < 35 ms
Viewing Angle (typical) H. 140 (- 70 ~ + 70) , V. 120 (- 60 ~ + 60)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Power Power Input 12V DC input with adapter
Power Consumption 21.375 Watt, <1 Watt
Operating Condition Temperature / Humidity -30C ~ 70C (22F ~ 158F) , 10% ~ 90% (no condensation)
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD

Options Touch Video / TV Enhanced Panel Others
Resistive touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch SV + AV + AV_Looping High brightness panel Networking Digital Signage
SAW touch SV + AV + TV Wide Temperature Motion Sensor
Infrared touch   Sunlight Readable Light Sensor
Protected glass     Auto-Dimming


PC Specifications

Processor CPU Intel Celeron Processor J1900, QC, 10W
Frequency J1900, 2.0 GHz, up to 2.42 GHz
L2 Cache 2 MB
CPU Type BGA
Chipset Integrated
BIOS AMI
Memory Technology Max. Capacity Dual-channel DDR3L 1333/1066 MHz
  Up to 8GB
Socket 2 or 1 x 204-pin SO-DIMMs
(depends on SKU)
Display Controller Intel HD Graphics
Graphic Memory Shared system memory up to 1.7 GB SDRAM
LVDS Daul Channel 24-bit
(add chrontel 7511B chipset)
VGA 1
Multiple Display 2 independent displays
Display Interface VGA up to 2560 x 1600 @60Hz LVDS up to 1920 x 1200 @60Hz
Ethernet Controller 2 or 1 x Realtek RTL8111G-CG GbE LAN (depends on SKU)
Audio Controller Realtek ALC887 HD Audio Codec
Super I/O Controller Fintek F81866AD-I
H/W Monitor Watchdog Timer 256-level Watchdog Timer
Smart Fan Yes
TPM Controller Pin header
I/O Interface USB 8 x USB 2.0 (4 x internal; 4 x rear)
Serial 6 x COM ports (COM1: rear, COM2~6: internal)
COM1: RS-232, 0V/5V/12V
COM2~6: RS-232, w/o power
Parallel 1 (Pin header)
PS/2 1 (Pin header)
GPIO 8-bits (4 x GPI, 4 x GPO), 3.3V
Expansion
Slot
PCIe x1 1
M.2 N/A
Mini-PCIe 1 x Full-size (w/ mSATA)
Storage SATA 1 x SATA 2.0
mSATA 1
Power Supply DC DC-in 12V
ATX N/A
Environment Operating Temperature 0 ~ 60C
Operating Humidity 10 ~ 90%, non-condensing
Storage Temperature -20 ~ 80C
Storage Humidity 10 ~ 90%, non-condensing
Form Factor Dimensions 170 x 170mm (Mini-ITX)
Weight 0.37 kg
Certification EMC FCC, CE, RCM, VCCI, BSMI
Software Platform OS Support Windows 7 (32/64-bit) Windows 8 (32/64-bit) Windows 10 (64-bit)
