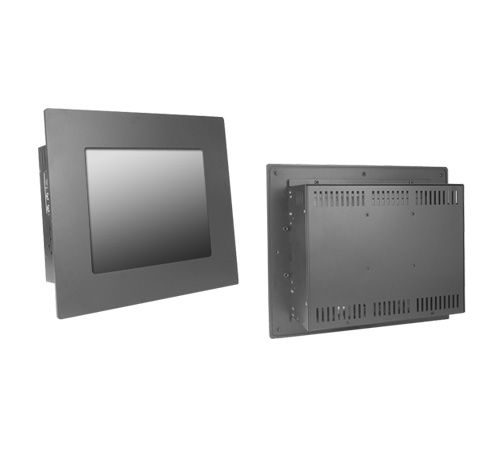

IP65 Front Panel PC (Metal-3mm), 10.4" LCD monitor, 1024x768, LED-400nits, Rear OSD, including rear screw/Clamp/VESA Mount, WV(178/178), WT(-30~70C), 12VDC-IN w/Adapter with Projective Capacitive Touch Screen + MS-98E1 ( H110 SKU ) / i5-6500 / RAM 4GB ( 0C~70C ) / SSD 256GB ( 0C ~70C )( Model: CPM1040XWT-i5-PCAP )

IP65 Front Panel PC (Metal-3mm), 10.4" LCD monitor, 1024x768, LED-400nits, Rear OSD, including rear screw/Clamp/VESA Mount, WV(178/178), WT(-30~70C), 12VDC-IN w/Adapter with Projective Capacitive Touch Screen + MS-98E1 ( H110 SKU ) / i5-6500 / RAM 4GB ( 0C~70C )  / SSD 256GB ( 0C ~70C )( Model: CPM1040XWT-i5-PCAP )

IP65 Front Panel PC (Metal-3mm), 10.4" LCD monitor, 1024x768, LED-400nits, Rear OSD, including rear screw/Clamp/VESA Mount, WV(178/178), WT(-30~70C), 12VDC-IN w/Adapter with Projective Capacitive Touch Screen + MS-98E1 ( H110 SKU ) / i5-6500 / RAM 4GB ( 0C~70C ) / SSD 256GB ( 0C ~70C )( Model: CPM1040XWT-i5-PCAP )

Main Feature

    • Modularize mechanical design provides flexible product configuration and easy maintenance
    • Optional build-in touch screen for interactive application
    • 2 independent displays with multiple video outputs (LVDS, HDMI, DVI-D, VGA)
    • Supports DirectX 11.1 and Intel Clear Video Technology (up to 1080P)
    • 3 SATA 3.0 ports for faster and high-capacity storage
    • Supports m-SATA function by Mini-PCIe slot
    • Plenty USB ports for more peripherals(USB3.0*4, USB2.0*4, Vertical Type USB2.0*1)
CPM1040XWT-i5-PCAP
  • Specifications
  • Download
  • Contact Sales
Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size 4 : 3 / 10.4" viewable diagonal area
Active Area / Pixel Pitch 210.4(H) x 157.8(V) mm / 0.2055(H) x 0.2055(V) mm
Native Resolution / Colors 1024(H) x 768(V) / 16.2 M
Brightness / Contrast 400 cd/m2 (typ) / 600 : 1
Response Time < 25 ms
Viewing Angle (typical) H. 178 (- 89 ~ + 89 ) , V. 178 (- 89 ~ + 89 )
Light Source LED backlight, Long life, 35,000 hrs (typ)
Power Power Input 12V DC input with adapter
Power Consumption 29.5 Watt, <1 Watt
Operating Condition Temperature / Humidity -30C ~ 70C (-22F ~ 158F) , 10% ~ 90% (no condensation)
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD


Options Touch Video / TV Enhanced Panel Others
Resistive touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch SV + AV + AV_Looping High brightness panel Networking Digital Signage
SAW touch SV + AV + TV Wide Temperature Motion Sensor
Infrared touch   Sunlight Readable Light Sensor
Protected glass     Auto-Dimming


PC Specifications

Processor CPU Intel Core i5-6500
Frequency 2.3GHz~4.0GHz (Depends on CPU)
L2 Cache 2M ~ 8M (Depends on CPU)
CPU Type Socket (LGA 1151)
Chipset Intel H110 Express
BIOS AMI
Memory Technology Dual-channel DDR4 (non-ECC) 2133MHz/2400MHz(7th Gen)
Max. Capacity Socket Up to 32 GB
Socket 2 x 260-pin SO-DIMMs
Display Controller Intel HD Graphics
Graphic Memory Shared system memory up to 1.7 GB SDRAM
LVDS 1
eDP N/A
VGA 1
DVI 1 (DVI-D)
HDMI 1
Display port N/A
Multiple Display 2 independent displays
Display Interface LVDS up to 1920 x 1200
HDMI up to 3840 x 2160
DVI-D up to 1920 x 1200
VGA up to 1920 x 1200
Ethernet Controller 1 x Intel I219-LM GbE-PHY
1 x Intel I211-AT PCIe GbE LAN
(Co-lay I210-AT)
Audio   Realtek ALC887 HD Audio Codec
Super I/O Controller Fintek F81866AD-I
H/W Monitor Watchdog Timer 256-level Watchdog Timer Yes
Smart Fan Yes
TPM Controller Pin header



I/O Interface
USB 4 x USB 3.0 (4 x rear)
4 x USB 2.0 (2 x rear; 2 x internal)
1 x USB 2.0 (Vertical, internal)
Serial 5 x COM (1 x rear; 4 x internal)
COM1: RS-232/422/485, 0V/5V/12V
COM2/3/4/5: RS-232, 0V/5V/12V
Parallel N/A
PS/2 1
GPIO 8-bits (4 x GPI, 4 x GPO), 5V
Expansion Slot PCIe x 16 1
M.2 N/A
Mini-PCIe 1 x Full-size, mSATA
Storage SATA 3 x SATA 3.0
mSATA 1 (shared w/ Mini-PCIe)
Power Supply DC N/A
ATX ATX-Power 24P, 12V-4P
Environment Operating Temperature 0 ~ 60C
Operating Humidity 10 ~ 90%, non-condensing
Storage Temperature -20 ~ 80C
Storage Humidity 10 ~ 90%, non-condensing
Form Factor Dimension 170mm x 170mm (Mini-ITX)
Weight EMC 0.37 kg
Certification EMC FCC, CE, RCM, VCCI, BSMI
Software Platform OS Support Windows 7 (32/64-bit)
Windows 8.1 (64-bit)
Windows 10 (64-bit)
Linux Kernel 4.X, support Fedora 23(64Bit)
& Ubuntu 16.04 (64Bit) of Kaby Lake-S & Skylake-S
