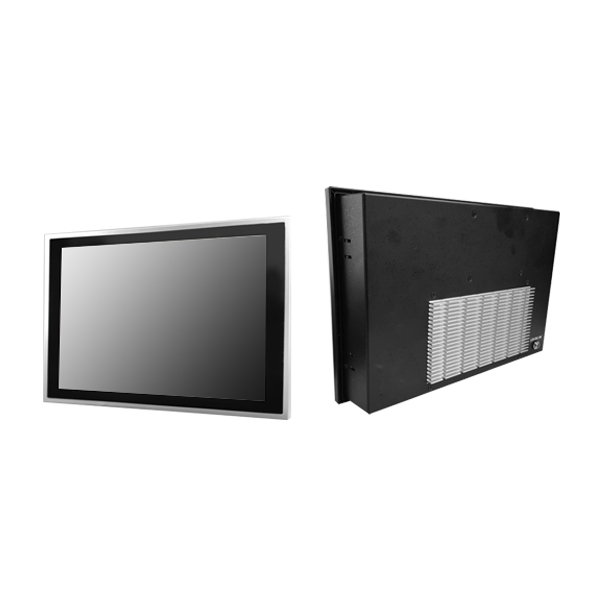

Zero Bezel Panel Mount, 10.1" LCD Monitor 1280 x 800, LED 1000 nits, VGA input, wide view angle and wide temperature, IntelŪ Core i5 Processor (Model: EPMW1010XHBWTWV-i5-F)

Zero Bezel Panel Mount, 10.1" LCD Monitor 1280 x 800, LED 1000 nits, VGA input, wide view angle and wide temperature, IntelŪ Core i5 Processor (Model: EPMW1010XHBWTWV-i5-F)

Zero Bezel Panel Mount, 10.1" LCD Monitor 1280 x 800, LED 1000 nits, VGA input, wide view angle and wide temperature, IntelŪ Core i5 Processor (Model: EPMW1010XHBWTWV-i5-F)

Main Feature

  • Modularize mechanical design provides flexible product configuration and easy maintenance
  • Optional build-in touch screen for interactive application
  • IntelŪ Core i5 Processors
  • IntelŪ 8th Gen (Whiskey lake-U)
  • Supports Dual Channel DDR4 SO-DIMM 2400 MHz, up to 32GB
  • 2 x Display Port, 4 x USB, 2 x LAN
EPMW1010XHBWTWV-i5-F
  • Specifications
  • Download
  • Contact Sales

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size Wide / 10.1" viewable diagonal area
Active Area / Pixel Pitch 216.96(H) x 135.6(V) mm / 0.1695(H) x 0.1695(V) mm
Native Resolution / Colors 1280(H) x 800(V) / 262 K
Brightness / Contrast 1000 cd/m2 (typ) / 800 : 1
Response Time < 16 ms
Viewing Angle (typical) H. 160° (- 80° ~ + 80° ) , V. 160° (- 80° ~ + 80° )
Light Source LED backlight, Long life, 35,000 hrs (typ)
System CPU IntelŪ Core i3 / i5 / i7 Processors
BIOS IntelŪ 8th Gen (Whiskey lake-U) Core™ MCP Processors
System / Graphic Chipset SoC
System Memory Supports Dual Channel DDR4 SO-DIMM 2400 MHz, up to 32GB
HDD 2 x SATA
I/O port 2 x Display port
4 x USB 3.0
2 x LAN
1 x Power
Expansion N/A
Power Power Input 12V DC-IN (Lockable connector)
Power Consumption 51 Watt, <1 Watt
Operating Condition Temperature / Humidity -20°C ~ 60°C (- 4°F ~ 140°F) , 10% ~ 90% (no condensation)
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD

Options Touch Video / TV Enhanced Panel Others
Projected Capacitive Touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Protected glass

SV + AV + AV_Looping

High brightness panel Networking Digital Signage
  SV + AV + TV Wide Temperature Motion Sensor
    Sunlight Readable Light Sensor
      Auto-Dimming
