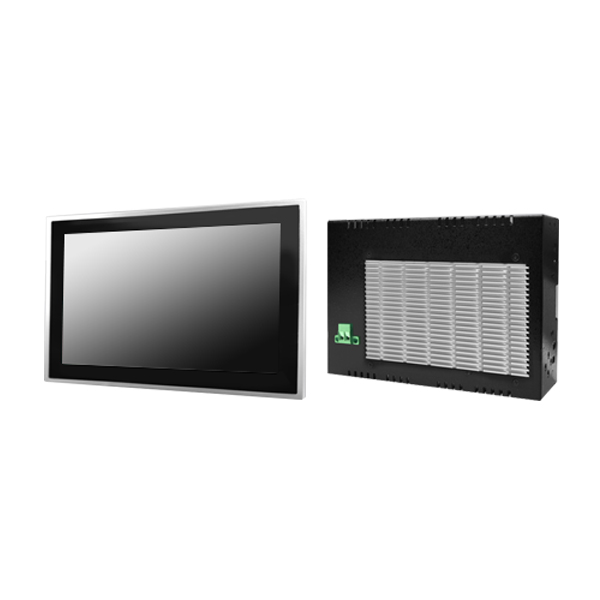

Zero Bezel Panel Mount, 7" LCD Monitor 800 x 480, LED 1000 nits, VGA input, wide view angle and wide temperature, IntelŪ Core i5 Processor, with PCAP Touch (Model: EPMW0700WTWVHB-i5-FPCT)

Zero Bezel Panel Mount, 7" LCD Monitor 800 x 480, LED 1000 nits, VGA input, wide view angle and wide temperature, IntelŪ Core i5 Processor, with PCAP Touch (Model: EPMW0700WTWVHB-i5-FPCT)

Zero Bezel Panel Mount, 7" LCD Monitor 800 x 480, LED 1000 nits, VGA input, wide view angle and wide temperature, IntelŪ Core i5 Processor, with PCAP Touch (Model: EPMW0700WTWVHB-i5-FPCT)

Main Feature

  • Modularize mechanical design provides flexible product configuration and easy maintenance
  • Optional build-in touch screen for interactive application
  • IntelŪ Core i5 Processors
  • IntelŪ 8th Gen (Whiskey lake-U)
  • Supports Dual Channel DDR4 SO-DIMM 2400 MHz, up to 32GB
  • 2 x Display Port, 4 x USB, 2 x LAN
EPMW0700WTWVHB-i5-FPCT
  • Specifications
  • Download
  • Contact Sales

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size Wide / 7" viewable diagonal area
Active Area / Pixel Pitch 152.40(H) x 91.44(V) mm / 0.1905(H) x 0.1905(V) mm
Native Resolution / Colors 800(H) x 480(V) / 262 K
Brightness / Contrast 1000 cd/m2 (typ) / 700 : 1
Response Time < 30 ms
Viewing Angle (typical) H. 160° (- 80° ~ + 80° ) , V. 160° (- 80° ~ + 80° )
Light Source LED backlight, Long life, 35,000 hrs (typ)
System CPU IntelŪ Core i3 / i5 / i7 Processors
BIOS IntelŪ 8th Gen (Whiskey lake-U) Core™ MCP Processors
System / Graphic Chipset SoC
System Memory Supports Dual Channel DDR4 SO-DIMM 2400 MHz, up to 32GB
HDD 2 x SATA
I/O port 2 x Display port
4 x USB 3.0
2 x LAN
1 x Power
Expansion N/A
Power Power Input 12V DC-IN (Lockable connector)
Power Consumption 45 Watt, <1 Watt
Operating Condition Temperature / Humidity -30°C ~ 80°C (-22°F ~ 176°F) , 10% ~ 90% (no condensation)
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD

Options Touch Video / TV Enhanced Panel Others
Projected Capacitive Touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Protected glass

SV + AV + AV_Looping

High brightness panel Networking Digital Signage
  SV + AV + TV Wide Temperature Motion Sensor
    Sunlight Readable Light Sensor
      Auto-Dimming
