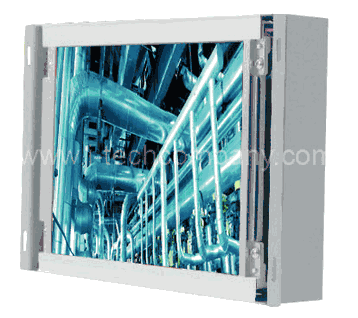

8.4" Open Frame LCD w/ Elo 5W Resistive USB Controller Touchscreen (Model WOP840T1SRU)

8.4" Open Frame LCD w/ Elo 5W Resistive USB Controller Touchscreen (Model WOP840T1SRU)

8.4" Open Frame LCD w/ Elo 5W Resistive USB Controller Touchscreen (Model WOP840T1SRU)

WOP840T1SRU
  • Overview
  • Download


Specification

Technical Description
Model Name WOP840T1SRU
Screen Size (diagonal) 8.4"
Active Display Area (mm) 170.4(H) x 127.8(V)
Native Display Resolution (pixels) 800x600
Brightness (CD/m^2) 450(typ.)
Contrast Ratio 600:1 (typ.)
Viewing Angles (L/R/U/D) -80~80 (H); -60~80 (V)
Optional Touch Screen Resistive, SAW
Power Information
Power Source AC 100~240 V, Universal,±10%
Power Consumption(Normal operation) 15 W typical, normal operation
Power Input VESA DPMS Compliant
Display Signals
Plug & Play VESA DDC 1/2B
Video Input (optional) S-Video, Composite
DVI Input (optional) No

*Due to Panel material's deviation, different panel supplier will set different specific variance range to optical characteristics. The factors of time used, Lamp current, Ambient temperature will influence the optical measurements.
