7" full IP67 display monitor, 1000 nits, 800x480 Resolution HDMI/USB interface WT(-20~70C) (Model: ASW700HBIP)

7" full IP67 display monitor, 1000 nits, 800x480 Resolution HDMI/USB interface WT(-20~70C) (Model: ASW700HBIP)

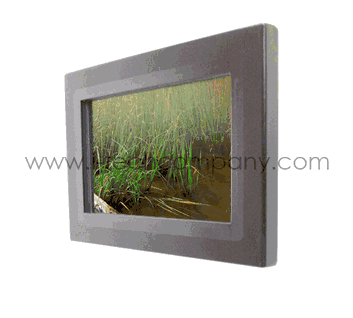

  • Back View

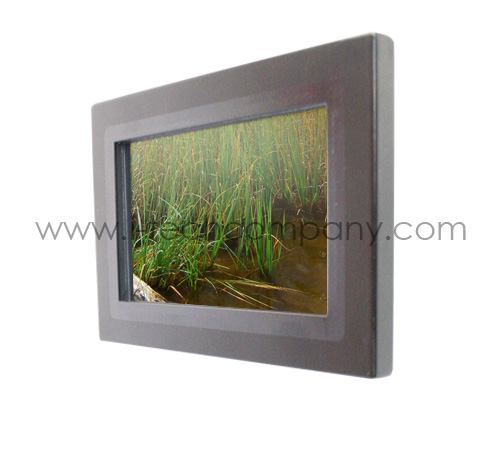

  • Side OSD

7" full IP67 display monitor, 1000 nits, 800x480 Resolution HDMI/USB interface WT(-20~70C) (Model: ASW700HBIP)

Main Feature

    • 7" Wide LCD Monitor
    • Brightness 1000nits
    • Wide Temp: -20C to 70C
    • IP65 Fully Sealed
ASW700HBIP
  • Specifications
  • Download
  • Contact Sales
LCD Size 7.0"
Backlight Backlight
Luminance 1000 cd/m2
Resolution 800X480
Contrast Ratio 600:1
View Angle 70/70/60/60
Response Time 10/16(Tr/Tf)(ms)
Pixel Size 0.1905x0.1905
Max. Color 262k/16.2M
Display Area 152.4(H) x 91.44(V)
MTBF 50000 Hrs
Response Time 10ms
Hardness of Surface 3H
Thickness 3mm
Activation Force 30~120g
Durability ≥1 million times
Transmittance ≥78%
DB26 DB26
Operation Temp. -20C~70C
Storage Temp. -30C ~80C
