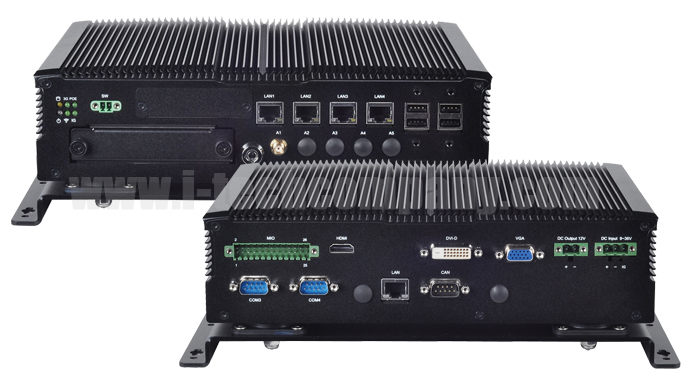

Intel® i7-3517UE In-Vehicle NVR Computer, with 4x PoE ports for IP cameras. 4GB DDR3 Memory included, 2.5 Removable Drive Bay, Mini-PCIe x2 with two SIM card reader, USB x 4, COM x 2, MIO, Optional CAN, Audio, HDMI, DC Power input +9~36Vdc with Ignition, Suspension Kit included (Model: LPC-V5X-A4)

Overview
Download

Key features

4 PoE ports with internal power supply
Intel® Core i7-3517UE
Fanless construction
Rich I/O: 4 x USB, 2 x COM, LAN, DI/DO, DMI, DVI and VGA
1 x removable drive bay
Vehicle ignition power management
CAN bus module (optional)
Built-in suspension kit
Dual 3G SIM slots via Mini-PCIe

Oveview

The LPC-V5X-A4 is a rugged vehicle PC designed for integrated on-board implementation of fleet management applications and vehicle monitoring.

Aside from the optional CAN bus support, the LPC-V5X-A4 provides 4 Gigabit PoE ports to connect IP surveillance cameras, enabled the device to function as a complete monitoring and security platform for public transport and corporate fleets. The powerful Intel® Core i7 processor offers ample capability for processing and transmitting multiple simultaneous data collection streams. When coupled with the suspension kit, rich I/O options, wide temperature tolerance (-20 to 60÷C with industrial components), and vehicle ignition control, the LPC-V5X-A4 is the ideal choice for high-performance vehicle monitoring.

Specifications

Platform
CPU	Intel® Core i7-3517UE Processor
Chipset	Intel HM65
Memory Technology	DDR3 1600 MHz
Memory Capacity	8 GB
Memory Socket	DIMM 204P x 1
Storage
IDE storage	1 x CF socket
SATA storage	Removable 2.5” SSD/HDD drive bay
I/O
Ethernet controller	5 x Intel 82583V
Graphic controller	Intel integrated HD graphic engine
Audio controller	Realtek ALC886 HD codec
Default LAN	5 x GbE RJ45 - 4 ports are full PoE (IEEE 802.3af)
Display output	DVI-D, VGA, HDMI, dual display support
Serial ports	1 x RS-232/422/485 with RI/5V/12V
GPS	Ublox NEO-7N receiver module
Digital I/O	4 x DI and 4 x DO with 5 V/12 V jumper setting, 2 x DI (from MCU) 3.3V level, 2 x DO control relay
USB 2.0	4 x Type A
Power and Mechanical
Expansion	2 x Mini PCIe
Others	Optional CAN bus (supports J1939 and J1708 protocols)
System cooling	Fanless design
Physical and Environmental
Commerical temperature	-5°C to 45°C
Storage temperature	-20°C to 60°C
Dimensions (W x H x D)	273.8 mm x 72 mm x 188 mm (10.78" x 2.83" x 7.40")
