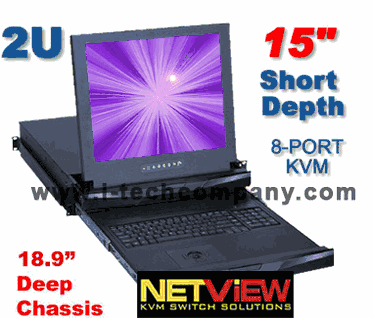

15" LCD Monitor Rack: 2U Short-depth Rackmount LCD w/ 8-port USB KVM Keyboard Drawer (Model: NVP2415-S801)

15" LCD Monitor Rack: 2U Short-depth Rackmount LCD w/ 8-port USB KVM Keyboard Drawer optional Touch Pad (Model: NVP2415-S801e) & Trackball (Model: NVP2415-S801b)
  • Front View
  • Front View
  • Side View
  • Side View
  • Keyboard

15" LCD Monitor Rack: 2U Short-depth Rackmount LCD w/ 8-port USB KVM Keyboard Drawer optional Touch Pad (Model: NVP2415-S801e) & Trackball (Model: NVP2415-S801b)

Inquiry/Quote Request
NVP2415-S801
  • Overview
  • Specifications
  • Download
Product discontinues. Contact us at Info@iTechLCD.com for replace items.

Part no. NVP2415-S801e/ NVP2415-S801b

Features and Benefits

  • PS/2 or USB KVM (New Features)
  • Only 2U (3.5" high) of vertical 19" rack-mount space.
  • Only 17" deep for 15" or 17" LCD and only 19" deep for 19" LCD
  • 2U Dual Slides allows see LCD through closed cabinet door
  • High-brightness 450-nit,TFT LCD Panel and high contrast-ration active TFT LCD flat panel integrated folding display.
  • 15" display supporting 1240 x 768 resolution.
  • Full 95-keys Windows keyboard (including a dedicated numeric keypad), and an integrated 19mm 3-buttons trackball. Optional for other keyboard type see Recommend Accessories for more details.
  • Industrial-grade heavy-duty steel construction with a built-in lock to prevent unauthorized console access.

Options (Click "OPTION" tab above to customize or Contact us at Info@iTechLCD.com for detail):

KVM Features and Benefits
  • Multi-platform-mix PCs, SUNs, IBMs, HPs, Compaq & DELL
  • Support 8 characters password protection & search PC server name
  • Cascades for use with up to 128 servers
  • New keep alive feature safeguards server for power loss to the switch
  • Built-in microprocessor emulation for each port boots up process
  • Auto scan-mode for monitoring your servers at intervals 5 to 99s
  • Hot-pluggable when adding or removing PC w/o powering down the switch
  • Name you server up to 16 characters long
  • No software needed & all mounting hardware included

Comes with

  • (1) RKP24 Series USB KVM drawer unit
  • (8) All-in-one KVM cable, 6-feet. "For PS/2 KVM Cables, please specify at Comments during online check out"
  • (2) Rear extension mounting brackets
  • (8) Mounting screws for rear extension mounting brackets
  • (4) Fasteners
  • (2) Key for Front Access Lock
  • (1) US Power cord
  • (1) Power Adapter 110/220V
  • (1) User Manual
Accessories
  • CV801 : 1U Rackmount 8-ports PS/2 KVM for cascading
  • CV1601: 1U Rackmount 16-ports PS/2 KVM for cascading
  • CVS801 : 1U Rackmount 8-ports USB KVM for cascading
  • CVS1601: 1U Rackmount 16-ports USB KVM for cascading
  • CA-6/CA-10/CA-15: Cascade KVM cables
  • CD-6/CD-10/CD-15: All-in-One PS/2 KVM cables connecting to Servers
  • CB-6/CB-10/CB-15: All-in-One USB KVM cables connecting to Servers
  • SUN-PS2-USB: Converting PS/2 to USB with SUN translating special keys stroke
Ordering Information
KVM Support
15" LCD series
17" LCD series
19" LCD series
1-port
NVP2415 NVP2417 NVP2419
1-port
NVP2415U NVP2417U NVP2419U

Console
8-port
NVP2415-801 NVP2417-801 NVP2419-801
16-port
NVP2415-1601 NVP2417-1601 NVP2419-1601
8-port
 NVP2415-S801 NVP2417-S801 NVP2419-S801
16-port
 NVP2415-S1601 NVP2417-S1601 NVP2419-S1601

2 Consoles
Over CAT5
8-port
 NV2415-82 NV2417-82 NV2419-82
16-port
 NV2415-162 NV2417-162 NV2419-162
8-port
 NV2415-82U NV2417-82U NV2419-82U
16-port
 NV2415-162U NV2417-162U NV2419-162U

2 Consoles
Over IP
8-port
 NVIP2415-82 NVIP2417-82 NVIP2419-82
16-port
 NVIP2415-162 NVIP2417-162 NVIP2419-162
Click here for Specification Order Information


Specification
LCD
Panel Samsung 15" LCD Panel
Screen Type TFT
Display Area 304.1(H) x 228.1(V) mm
Contrast Ratio 300 : 1
Viewing Angle 140 ° (H) x 120 ° (V) (Typ.)
Resolution 1024 x 768
Pixel pitch 0.297(H) x 0.297(W) mm
Response Time Tr=5ms, Tf=20ms (Typ.)
Brightness 450 cd/m2
Panel Color 16.2M
Back Light 4 CCFTs (Cold Cathode Fluorescent tube)
Video
Horizontal Synchronization 48 - 60 KHz (Typ.)
Vertical Synchronization 60 - 75 Hz (Typ.)
Input Signal Analog RGB 0.7Vp-p
Power Management
VESA DPMS
Control
OSD Control Brightness, Contrast, Colour, Clock, H.Position, V.Position, Phase, Scaling, Auto config, Input select, Multi window, Clear EEPROM, OSD adjust, Save

External Connection
Power Input 12V/5A DC adapter
Video Input 15-pin D-Sub connector
Dimension
Product dimension 43.9(W) x 4.45(H) x 60(D)cm
Packing dimension73.5(L) x 57.5(W) x 18(H)cm
Diagram

USB Single Console KVM Switch

8-Port
16-port
PC port
8
16
PC Port interface
HDDB 15 pin
N/A
PC Computer Interface USB port: Type A Female USB port: Type A Female
VGA : HDDB 15pin Female VGA : HDDB 15pin Female
KVM Cable Connection 2-in-one HDDB 15-pin KVM Cable
(CB-6/ 10/ 15)		 2-in-one HDDB 15-pin KVM Cable
(CB-6/ 10/ 15)
PC Selection
On screen display menu, Hot key, Push button
LED
1 Bank LED
1 Bank LED
8 Online LED (Green)
16 Online LED (Green)
8 Selected LED (Green)
16 Selected LED (Green)
On screen display control
Yes
Scan intervals
5-99 seconds
Keyboard and mouse emulation
USB
VGA resolution (Max.)
1920 x 1440
1920 x 1440
CAT.5 cable length (Max.)
N/A
N/A
Bandwidth
200MHz
200MHz
Cascade Level (Max.)
8 Levels
Housing
Metal
Power Adapter
DC 12V 1A
DC 12V 1A
Operation Temperature
0~40 ℃
Humidity
0~80%, Non-Condensing

Ordering Information
KVM Support
15" LCD series
17" LCD series
19" LCD series
1-port
NVP115 NVP117 NVP119
1-port
NVP115U NVP117U NVP119U

Console
8-port
NVP115-801 NVP117-801 NVP119-801
16-port
NVP115-1601 NVP117-1601 NVP119-1601
8-port
 NVP115-S801 NVP117-S801 NVP119-S801
16-port
 NVP115-S1601 NVP117-S1601 NVP119-S1601

2 Consoles
Over CAT5
8-port
 NV11582 NV11782 NV11982
16-port
 NV115162 NV117162 NV119162
8-port
 NV11582U NV11782U NV11982U
16-port
 NV115162U NV117162U NV119162U

2 Consoles
Over IP
8-port
 NVIP11582 NVIP11782 NVIP11982
16-port
NVIP115162 NVIP117162 NVIP119162
