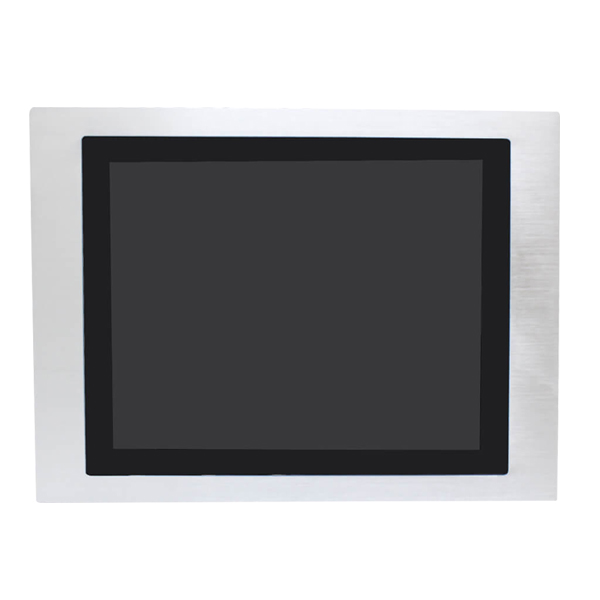

15" Aluminum Front Bezel True Flat Touch Panel PC, True flat 5W resistive touch screen , i5 4300U , 2 x HDMI , 2 x RS232 , 4 x USB, 2 x LAN, 1 x 24V DC in , VESA mounting & panel mount , resolution : 1024 x 768 dpi (Model: KPC1500-i5-FTR)
15" Aluminum Front Bezel True Flat Touch Panel PC, True flat 5W resistive touch screen , i5 4300U , 2 x HDMI , 2 x RS232 , 4 x USB, 2 x LAN, 1 x 24V DC in , VESA mounting & panel mount , resolution : 1024 x 768 dpi (Model: KPC1500-i5-FTR)
Main Feature
- Fanless design and compact solution
- 4th Gen Intel i5 4300U CPU
- Resolution 1024 x 768 dpi
- 5 wire Resistive / PCAP touch solution
- IP65 Silver aluminum front bezel
- Various Sunlight Readable High Brightness Panel for choose
- 4 x USB, 2 x HDMI, 2 x LAN, 1 x RS232
- Panel mount & VESA mounting & Clips
X
Inquiry/Quote Request
- Specifications
- Download
- Contact Sales
| System | |
| CPU | 4th Gen Intel Core i5 4300U CPU (On Board) |
| Memory | 2 x 204-pin DDR3L SODIMM up to 16GB |
| H/W Monitor | |
| Watchdog Timer | Watch Dog Timer 256 Level |
| I/O Ports | |
| RS232 | 1 |
| GLAN | 2 |
| USB | 2x USB 2.0; 2 x USB3.0 |
| HDMI | 1 |
| Line-Out/In Mic in | 1 |
| Storage | |
| Storage | 1 x SATA 2.0 2.5” HDD/SSD |
| Expansion | |
| Mini-PCIe | 1 x Full-size (one w/ mSATA) |
| Power Requirement | |
| Power Input Voltage | DC in 12V or 19~24V |
| Touch Screen | |
| Touch screen | 5-wire resistive |
| OS support | |
| Win Pro 7,8,10 ; Embedded Win 7, 8,10 | |
| Display | ||
| Size | 15" TFT (4:3) | |
| Resolution | 1024 x 768 | |
| Colors | 16.2M | |
| Luminance ( cd/m2) | 400 | |
| Contrast Ratio | 700:1 | |
| View Angle ( H / V ) | 160/160 | |
| Mechanical & Environmental | ||
| Operation Temp | 0 ~ 45°C | |
| Storage Humidity | 10 ~ 90%, non-condensing | |
| Mount | Clip mount, Panel mount & VESA mounting(100X100mm) | |
| Dimension (W x H x D mm) &Weight |
441 x 322 x 68.6mm (11kg) | |
| Optional | ||
| RS232/422/485 | 2 | |
| External antenna | 1 or 2 | |
| Waterproof Sponge | 1 | |
| Front IP66 Bezel with Oring | 1 | |
| Clip | 8 | |
| No Touch Screen | 1 | |
| Optional High Brightness Panel | |||||
| Resolution | 1024 x 768 | ||||
| Color | 16.2M | 16.7M | 16.7M | 16.2M | 16.2M |
| Luminance(cd/m2) | 2000 | 1600 | 1000 | 1000 | 800 |
| Contrast Ratio | 700 : 1 | 700:1 | 1700:1 | 700:1 | 700:1 |
| Viewing Angle (H/V°) | 160/160 | 160/160 | 170/170 | 160/160 | 160/160 |
