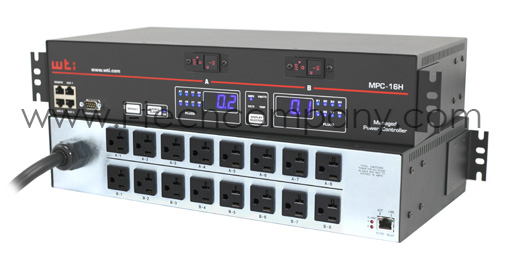

Rack Mount PDU, Switched, 2U, 30A, 120V, (16)5-20R (Model: MPC-16HS30-1)

Rack Mount PDU, Switched, 2U, 30A, 120V, (16)5-20R (Model: MPC-16HS30-1)

Rack Mount PDU, Switched, 2U, 30A, 120V, (16)5-20R (Model: MPC-16HS30-1)

MPC-16HS30-1
  • Overview
  • Download

Single Input
Voltage: 120V
Current: 30A (24A Derated)
Connector: NEMA L5-30P 6ft

Output
Voltage: 120V
Current: 30A (24A Derated)
Outlets: (16) NEMA 5-20R
Overcurrent Protection: (2) 20A Circuit Breakers

iTechLCD rack mount switched PDUs enable complete control over current, power and energy usage within your data center and across the network. As the first and only rack mount PDUs to meter, report and control total current, power and energy consumption, our switched power distribution units are the perfect solution for data centers striving for LEED certification or reducing energy costs. iTechLCD rack mount switched PDUs can meter and report kWh, kW, A, V, Temperature and schedule equipment shutdowns based on user defined threshold alarms or when devices need a simple power reboot. Energy, power and current data from IT equipment is measured on each circuit within your data center or network and used for billing, heat calculation and load distribution.

iTechLCD rack mount switched PDUs can be used with its standalone IP web browser interface or any MIB based SNMP enterprise management software.


Current Power & Energy Management:

  • Meter & Report Kilowatt-Hours in the Data Center
  • Meter & Report Amperage Loads on Each Circuit
  • Meter & Report Kilowatts for Cooling Demands
  • Meter & Report Voltage Input
  • Sense & Report Temperature
  • Graph Daily, Weekly, Monthly & Yearly Power Consumption
  • Power Load-Shedding w/ Auto Recovery

Access/Security/Control:

  • 10/100Base-T Ethernet Port
  • SNMP Control (v1,v2c,v3)
  • SSHv2 Encryption
  • LDAP, Kerberos, RADIUS, TACACS+
  • Alarm Notification via Email, SNMP, Syslog, text message, LED or audible alarm
  • Command Logging with Audit Trail
  • SSL Web Browser (Https) for Set Up and Operation
  • Approved Software Integration

Data Center Power Metering:

  • True RMS Current Metering
  • Local 3 Digit LED Display
  • Current Load Data Collection/Aux Unit Polling
  • Amp Metering On Power In-Feed
  • User Defined Threshold Alarms

Remote Reboot & Power Switching:

  • IP & SNMP Control
  • Remote Outlet Switching
  • Automatically Power Reboot Locked Equipment
  • Timed & Scheduled Power Reboot/Shutdowns

Network-grade Power Distribution:

  • Circuit Breaker Protection
  • 30 Amp In-Feed
  • 2U Horizontal Mounting
  • 19" Rack Mounting Brackets


Specifications

Interface Descriptions:
Ethernet Port: 10/100Base-T, RJ45
Console Port: (1) DB9M, RS232C
AUX/LINK Ports: (3) RJ45, RS232C
Remote Display Port: (1) RJ45, RS232C
Power:
Voltage: 85 - 125 VAC, 50/60 Hz
Power Distribution:
(80% Derated)
2/3 kW
Power Outlets: (16) NEMA 5-20R
Current: 30 Amps (24 Amps Derated)
Iput Feed: (1) 30 Amps
Overcurrent Protection: (2) 20 Amp Circuit Breakers
Branches per Input: 2
Power Input Cable: NEMA L5-30P (6 ft.)
Physical/Environmental:
Size: 3.5"H x 19"W x 8.7"D (1U)
(8.9 cm H x 48.3 cm W x 22.1 cm D)
Weight: 15 Lbs. (6.8 Kg) Shipping Weight
Operating Temperature: 32° to 122° F (0° C to 50° C)
Humidity: 10% to 90% RH
Mounting: 19" Rack Brackets Included
Agency Approvals:
FCC, UL
