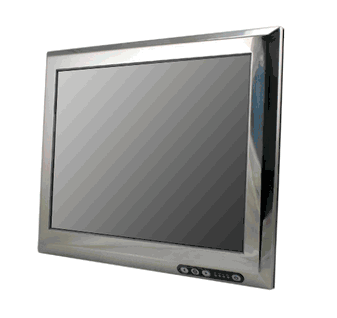

15" XGA 1024x768 Full IP-65 Stainless Steel panel PC Industrial Touch Panel PC, 400 nits (Model: VPC1500SIPQC)
15" XGA 1024x768 Full IP-65 Stainless Steel panel PC Industrial Touch Panel PC, 400 nits, ErP Design Intel Celeron SoC J1900 2.0GHz CPU/4G DDR3L/32G SSD/1GLAN/2USB/12~26V input/24V Adapter (Model: VPC1500SIPQC)
Main Feature
- Fanless Onboard Intel® Atom Quad-Core E3845 1.91GHz with Integrated Chipset
- One 204-pin DDR3L SODIMM Socket Supports Up to 8GB DDR3L 1333 SDRAM
- 1 CF, 2 USB, 1 COM
- Dual Intel I210IT Gigabit LAN
- Wide Voltage +12V ~ +26V Input, ErP Power
- Backlight Controlled by PWM
- Full System IP65
- Timer-Power-On
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
- Contact Sales
| VPC Series Full NEMA4/IP65 Water/Dust Proof All in One Stainless Steel Fanless Solutions | ||||
|
||||
|
||||
|
| SYSTEM | |
| Processor | Intel® Atom™ E3845 4-Core 1.91GHz processor |
| System Memory | 1 x 204-Pin DDR3L 1333MHz SO-DIMM up to 8 GB |
| I/O Chip | EC ITE IT8528E |
| Watchdog Timer | H/W Reset, 1sec. ~ 65535sec./1sec.step |
| H/W Status Monitor | Monitoring SYSTEM Temperature and Voltage with Auto Throttling Control |
| SBC | EBM-BYT |
| EXPANSION | |
| Expansion | 1 x Mini PCIe Support mSATA 1 x Mini PCIe Supports SIM Card |
| STORAGE | |
| Storage | 1 x CompactFlash Type I/II Socket 1 x 2.5" Dirve Bay |
| I/O | |
| USB | 3 x USB 2.0 |
| SATA | 1 x SATA II |
| COM Port | 1 x RS-232 |
| DISPLAY | |
| Chipset | Intel® Valleyview SoC integrated Graphics Supports dual display |
| Resolution | HDMI:Max. resolution 1920x1200@ 60Hz |
| AUDIO | |
| Chipset | Realtek ALC892 |
| Audio Interface | Line-Out |
| Speaker Output | 2 x 0.5W |
| ETHERNET | |
| Chipset | 1 x Intel® I210IT |
| Ethernet Interface | 10/100/1000 Base-Tx GbE compatible |
| LAN Port | 2 x RJ-45 |
| MECHANICAL & ENVIRONMENTAL | |
| Operating Temp | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temp | -20°C ~ 60°C (-4°F ~ 140°F) |
| Operating Humidity | 20% ~ 80% Relative Humidity, Non-condensing |
| Weight | 6.42Kgs |
| Dimension (L x W x H) | 371 x 308 x 63.6mm |
| Vibration Test | With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis |
| Shock Test | With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms |
| System Fan | Fanless |
| Construction - Front | Front & Rear Silver Stainless |
| Construction - Rear | Black |
| CERTIFICATIONS | |
| Certification Information | CE / FCC Class A |
| SOFTWARE SUPPORT | |
| OS Information | Win 7 Win 8 Linux |
| POWER REQUIREMENT | |
| Power Connector | Lockable DC Jack |
| Power Requirement | +12V ~ +26V |
| Power Mode | AT/ATX (ATX is default setting) |
| Adapter | Input: 100 ~ 240Vac/ 50 ~ 60Hz Output: 60W Adapter (12V @ 5A Adapter) AC-DC Adapter AC-DC Adapter |
| PANEL | |
| LCD Size | 15", 4:3 |
| Display Type | XGA |
| Resolution | 1024x768 |
| Pixel pitch | 0.297mm(H) x 0.297mm(V) |
| Luminance | 400 cd/m2 |
| Contrast ratio | 700 |
| Viewing angle | 70 (U), 70 (D), 80 (L), 80 (R) |
| Response time | 16 ms |
| Backlight | LED |
| Touch Type | 5 Wires resistive |
| Touch Light Transmission | 80% |
| Touch Controller | Onboard USB touch (EETI) |
