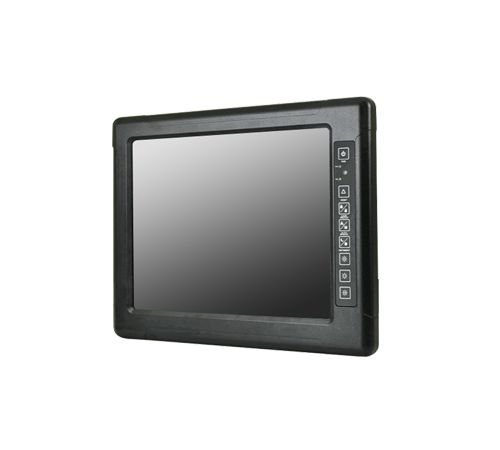

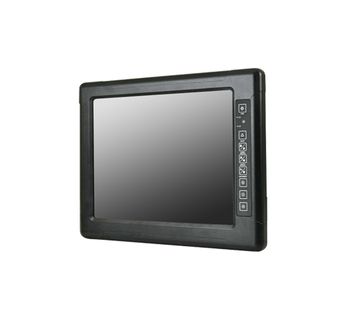

15" Ruggedized Military LCD Full IP65 Dust/Water Proof Enclosures (Except I/O parts) (Model: WMRM1500HB)

Overview
Download

Features:

High Quality 15" XGA Panel, 1024*768 resolution
Full IP65 Dust/water resistant Protection
Aluminum Housing with Anti-Corrosion Treatments
Optical Bonding with Anti-moisture Treatment
Anti-Shock and Vibration Standard by MIL- STD-810F
5 Wire Resistive Touch/ Anti-Reflection Protection Glass(Optional)
Wide Range 9 to 36V DC Input Acceptable(Optional)
Extended Wide Temperature Range(Optional)

Specifications:

Display Specification
Viewable Size Image	15"

Active Display Area(mm)	304.1 (H) x 228.1 (V)

Pixel Pitch(mm)	0.297 (H) x 0.297 (V)

Number of Pixels	1024x768

Contrast Ratio	600:1 (typ.)

Brightness(cd/m2)	800 (typ.)

Display Color	16.7M (8bits/color)

Viewing Angle(CR>=10)	-75~75 (H); -60~50 (V)

Synchronization Range_(H) / (V)	31.5~60.0KHz / 60~75Hz

Recommended Resolution	1024x768@60Hz, 75Hz

Mesh Film Coding	Optional

I/O Connectors
Back Panel I/O Port	1 x VGA(military grade) 1 x DC-in (military grade) 1 x RS232/USB for optional Touch Screen (military grade)

In fornt Control
Control Button	Menu / Auto-adjust / SWAP/ PIP Button Brightness Up /Increase Button Brightness Down / Decrease Button LED Button Brightness Display Power Button

Led indicator	Power On/ Off Sleep

Mechanical and Environment
Dimensions (W x L x H)	398 mm x 308 mm x 58mm

Net Weight (kg) (with touch)	5.2

Power Input	DC 12V w/military connector(/MS27467T9F98S)

Power Consumption	35W typ.

Operation Temperature	-10 deg.C to 55 deg.C

Operation Humidity	10% to 95% (non condensing)

Shock*	Operating:40g for 18ms

Vibration*	Operating: 1.62/2.02/2.20g rms for XYZ / 5-500Hz

EMI(Optional)	MIL-STD 461E(optional)

Certifications	CE, FCC ClassB MIL-STD 810F for Vibration /Shock

Humidity*	MIL-STD-810F 507.4

Transit Drop*	MIL-STD-810F 516.5 (package)

High Temperature*	MIL-STD-810F 501.4

Low Temperature*	MIL-STD-810F 502.4

Product Option Items
Mounting Bracket and Kits	One robust bracket with locking handle (Can adjust from -5deg. to 90deg.)

Wide Temperature	Extended temperature -20 to 60 deg. C module build-in for optional

EMI ITO Glass	3mm Anti-reflective Protection Glass (EMI)/5W resistive touch(EMI)

Video Input	Composite Video, S-Video for optional

Wide Power Input Range	9V to 36V wide range acceptable for optional

*The weight information is for reference purpose.The actual weight will vary according to then options you choose,for example,the touch/glass option.
