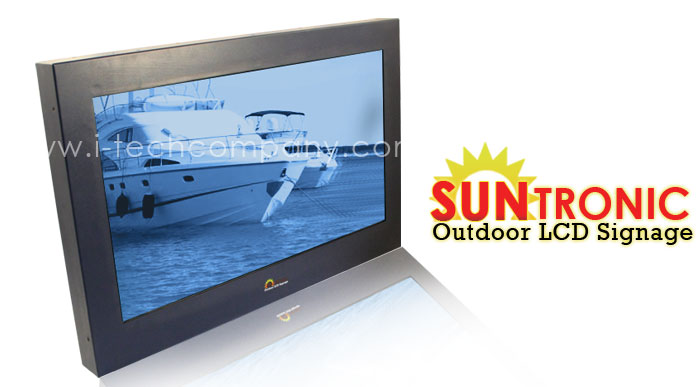

  • Front View
  • Side View
  • Back View
  • Input/Ouput
  • Bottom View
  • Speaker

Rugged Marine Grade High Brightness 46” LCD 1200 Nits Large Yacht Displays and Monitors (Model: M4600)

M4600
  • Overview
  • Download
Features:
  • Auto Dimming control backlight brightness from 100% to 50%
  • 1200 High Brightness LCD Panel
  • LED Backlight with High Contrast
  • Ruggedized IP65 Proof with Enclosures (IP54 Bottom)
  • Optional DC to DC power input acceptable
  • Touchscreen optina
  • IP65 OSD front panel Design

Specifications:
Display Size: 46" (1018.353 x 572.544 mm2)
Panel Type: TFT LCD
Resolution Capabilities:

1920 x 1080 RGB

Color: 16.7 M
Pixel Pitch:

0.5302 x 0.5302 mm

Horizontal Freq. 62.13KHz ~ 75.6KHz
Vertical Freq. 57Hz ~ 63Hz
Contrast Ratio: 2000:1 Typical
Brightness: 1200 cd/m2, LED backlight enhanced
Dimming range: Auto dimming by light sensor
Viewing Angle 89/89/89/89
Response Time 15ms / 5ms
Interface: VGA, AV, S-video, HDMI (round connector IP66)
Video System PAL/SECAM/NTSC-3.58, NTSC-4.43, PAL-60  (reserved for internal media player)
Remote control Support for full OSD features
Operate Voltage AC 100 ~ 240V 60/50Hz
Power Consumption 750 Watt for complete monitor, Additional 120 Watt for optional Heater
Stand by mode 25 W or less
Enclosure IP54
Protection 4--6mm Vandal glass at the front
Accessories

AC Power Cord, Remote Control.
VGA cable x 1, S-Video cable x 1, HDMI Cable x1

Environmental Operating temperature  -10 ~ 45C, wide temp -30 ~ 45C
Options: Operating Humidity    10% ~ 85%
Storage temperature     -30 ~ 55C
Storage Humidity       5% ~ 95%

Mechanical Drawings:
