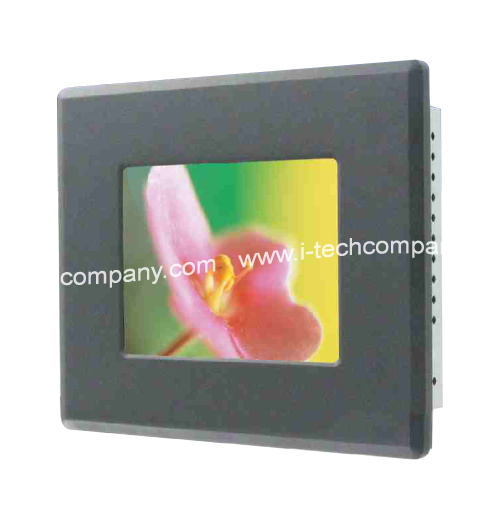

Rugged industrial monitors/Panel Mount LCD Monitor 6.4" (Model: WPM640-IP1)

Overview
Download

Specification
Model Name	WPM640-IP1

Screen Size	6.4"

Active Display Area (mm)	129.6 (H) x 97.44 (V)

Pixel Pitch (mm)	0.203 (H) x 0.203 (V)

Display Resolution (pixel)	640x480

Contrast Ratio	400:1 (typ.)

Display Color	262,144 (6bits/color)

Brightness (CD/m^2)	400 (typ.)

Viewing Angles (CR >=10)	-50~50 (H); -35~15 (V)

Synchronization Range_Horizontal / Vertical	31.5~37.5KHz / 60~75Hz

Recommended Resolution	640x480@60Hz, 75Hz

Signal Connector	15 pin D-sub

Power Source	AC 100~240 V, Universal,±10%

Power Consumption	15 W typical, normal operation

Power Management	VESA DPMS Compliant

Plug & Play	VESA DDC 1/2B

Video Input (optional)	S-Video,Composite

DVI Input (optional)	No

Support Video Signal Type	NTAC/PAL

Optional Touch Screen	Resistive, SAW *

Remark:WPM640 = VGA input only
WPM640 = VGA + Video input
* When adding SAW touch, the IP grade will be IP54

*Due to Panel material's deviation, different panel supplier will set different specific variance range to optical characteristics. The factors of time used, Lamp current, Ambient temperature will influence the optical measurements.

MECHANICAL DRAWING
