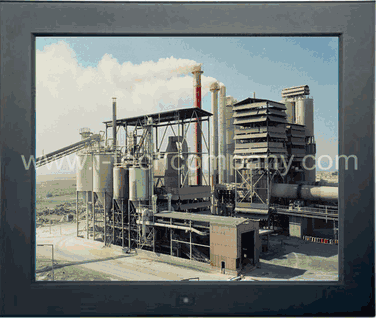

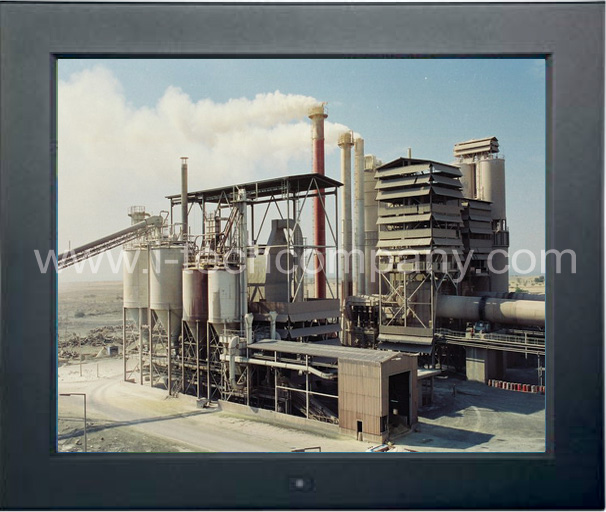

19" Rugged Industrial Panel Mount LCD Monitor NEMA 4 / IP65 front protection (Model iNAP-1900)
- Overview
- Specifications
- Download
19" Rugged Industrial Panel Mount LCD Monitor NEMA 4 / IP65 front protection (Model iNAP-1900)
X
Inquiry/Quote Request
Features
• 19" LCD with resolution 1280 x 1024• Rugged construction against external impact
• 6mm aluminum front bezel with protective glass
Options
• HDMI, S-Video + BNC & Audio• 3G / HD / SD-SDI Broadcast-grade input
• MCS Multi-display control solution
• 19" Touchscreen : Capacitive, Resistive
• MIL-type or lockable connector
• 48V, 24V or 12VDC power
• Quad display for CCTV
• TV - Analog
- An abundance of input connections that include HDMI, DVI-D, VGA, S-Video + BNC and audio
- On-chip Faroudja® DCDi Cinema processing
- Casing dimensions will be changed
Specifications
| LCD Panel | ||
| LCD Manufacturer | Samsung | |
| Size (diagonal) | 19" TFT | |
| Max resolution | 1280 x 1024 | |
| Brightness (cd/m2) | 250 | |
| Backlight | CCFL | |
| Colors | 16.7 M | |
| Contrast ratio (typ) | 1000 : 1 | |
| Viewing angle (H/V) | 160° x 160° | |
| Active area (mm) | 376 x 301 | |
| MTBF (hrs) | 50,000 | |
| Signal input | DVI-D / VGA | |
| Weight | ||
| Net / Gross | 6 kgs ( 13.2 lbs ) / 8 kgs ( 17.6 lbs ) | |
| Mounting | ||
| Panel mount / VESA mount | ||
| Environmental | ||
| Operating | 0 to 50°C Degree | |
| Storage | -5 to 60°C Degree | |
| Relative humidity | 5~90%, non-condensing | |
| Shock | 10G acceleration (11 ms duration ) | |
| Vibration | 5~500Hz 1G RMS random vibration | |
| Casing Color | ||
| Black front panel ( RAL 9005 ) Dark grey rear case ( RAL 7037 ) |
||
| Regulatory | ||
| FCC, CE | ||
| Power | ||
| Input |
Auto-sensing 100 to 240VAC, 50 / 60Hz | |
| Consumption | Max. 48 Watt, Standby 5 Watt | |
| Dimensions | ||
| Product | 477 x 64 x 384 mm / 18.8 x 2.5 x 15.1 inch | |
| Packing | 651 x 124 x 597 mm / 25.6 x 4.9 x 23.5 inch | |
| Specification | ||
| LCD Panel | ||
| LCD Manufacturer | Samsung | |
| LCD Type | Grade A industrial TFT LCD Panel | |
| Panel Size | 19" diagonal | |
| Display Area | 376 x 301 mm (HxV) | |
| Max. Resolution | 1280 x 1024 | |
| Brightness | 250 cd/m2 (Typical) | |
| Color Support | 16.7 Mil. | |
| Viewing Angle | 80° / 80° / 80° / 80° (L / R / U / D) | |
| Contrast Ratio | 1000 : 1 (Typical) | |
| Tr Respones Time | 1.3 ms | |
| Pixel Pitch | 0.294 x 0.294 mm | |
| OSD Control | Brightness, Contrast, Phase & Clock, Color, H & V position, Auto-tune & Recall |
|
| LCD MTBF | 50,000 hrs | |
| Mechanical | ||
| Material | 6mm Aluminum (Front panel), 1.2mm Steel (Rear case) | |
| Finish | Powder Coating | |
| Color | Front Panel : Black, Back : Dark Grey (RAL7037) | |
| Dimension | 471 x 63 x 393 mm (WxDxH) | |
| Weight | 6 kg | |
| Package Information | ||
| Carton Box | 653 x 112 x 558 mm (WxDxH) | |
| Weight | 8 kg | |
| Signal Input | ||
| Input Video Signal | Analog RGB | |
| Video Level | Analog: 0.7Vp-p | |
| Sync Type | Separate H/V, Composite H/V | |
| Input Connector | D-Sub 15 pin VGA analog | |
| Protective Glass | ||
| Material | 4 mm protective glass ( front NEMA4/ IP 65 protection) | |
| Power | ||
| Power Input |
Auto-sensing 100 to 240VAC, 50 / 60Hz via AC Adapter | |
| Power Consumption |
Max. 40 Watt, Standby 5 Watt | |
| Environmental | ||
| Operation |
0° to 50°C Degree | |
| Storage | -5° to 60°C Degree | |
| Relative Humidity |
5~90%, non-condensing | |
| Shock | 10G acceleration (11ms duration) | |
| Vibration | 5~500Hz 1G RMS random vibration | |
| Option | ||
| AV Input | ||
| Video Input | S-Video and Composite | |
| Connectors | S-Video, RCA | |
| BNC Input | ||
| Video Input | S-Video and Composite | |
| Connectors | S-Video, BNC | |
| DC Power Input | ||
| Input Voltage | 12 / 24 / 48-Volt | |
| Audio Input | ||
| Audio Input | Analog audio 2-channel (L/R) | |
| Speaker | 3W x 2 | |
| TV Tuner | ||
| Signal Input | NTSC, PAL (I, B, G, H, M, D, N), SECAM (D, K, L, B, G) | |
| Connectors | RF | |
| e-Resistive Touchscreen | ||
| Type | 5-Wire Resistive | |
| Interface | USB / Serial | |
| Optical Transmittance | 82%±5% | |
| Surface Hardness | ≥3H (JIS K5400) | |
| Operating System | Windows 98 / 2000 / ME / XP / NT / CE, DOS, Linux | |
| 3M Capacitive Touchscreen | ||
| Type | 3M Capacitive | |
| Interface | USB / Serial | |
| Optical Transmittance | 88% | |
| Surface Hardness | Mohs’ hardness rating: 6 | |
| Operating System | Windows 98 / 2000 / ME / XP / NT / CE, DOS, Linux | |
