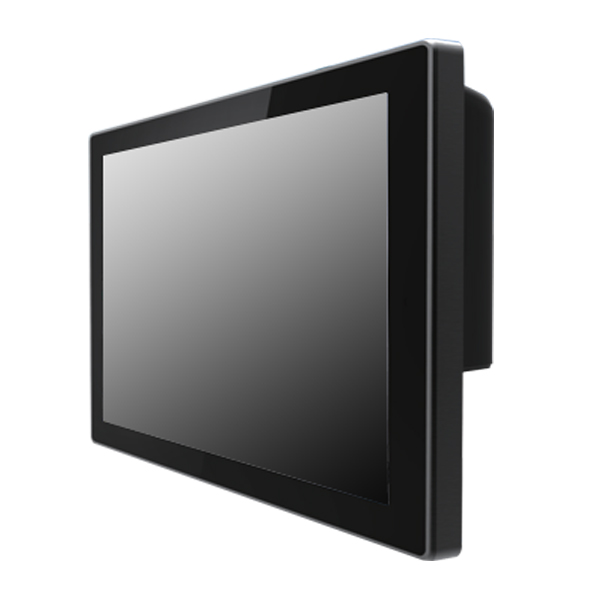

12.1" Rugged Full IP65 Dust/Water Resistant Protection 1024x768, 500nits Panel PC Intel Core i5-7200U Kaby Lake 3.1 GHz with Projected Capacitive Multi-Touch (P-CAP) (MODEL: WRDPC1210-i5-TF)

12.1" Rugged Full IP65 Dust/Water Resistant Protection 1024x768, 500nits Panel PC  Intel Core i5-7200U Kaby Lake 3.1 GHz with Projected Capacitive Multi-Touch (P-CAP) (MODEL: WRDPC1210-i5-TF)

12.1" Rugged Full IP65 Dust/Water Resistant Protection 1024x768, 500nits Panel PC Intel Core i5-7200U Kaby Lake 3.1 GHz with Projected Capacitive Multi-Touch (P-CAP) (MODEL: WRDPC1210-i5-TF)

Main Feature

  • 12.1" 1024 x 768 with P-CAP touchscreen
  • High computing performance with 7 Generation(kaby Lake) Intel Core i5-7200U processor
  • Fanless cooling system and ultra-low power consumption
  • Front IP65 for protection against water and dust
  • A true flat, easy-to-clean front surface with edge-to-edge design
  • Plenty of I/O, including 2 x LAN, 1 x COM, 2 x USB 3.0, 1 x HDMI
WRDPC1210-i5-TF
  • Specifications
  • Download
  • Contact Sales
SYSTEM
Processor Intel® Core i5-7200U 2.5GHz (turbo to 3.1GHz)
BIOS Insyde BIOS
System Chipset Intel® SoC Integrated
System Memory 4GB DDR4-2133 SO-DIMM (Max 16GB)
 Storage 64GB M.2 B Key SATA III (Options up to 256GB)
LAN Intel® Gigabit-LAN Controller I211AT + PHY I219LM
Audio Realtek ALC283 HD Audio Codec
INPUT / OUTPUT
Serial Port 1 x RS-232/422/485
USB Port 2 x USB 3.0
Ethernet 2 x RJ 45-10/100/1000 Mbps
Speaker 2 Watt Speaker
HDMI 1 x HDMI 1.4a
DISPLAY SPEC
Size/Type 12.1” TFT
Resolutions 1024 x 768
Brightness 500 cd/m (typ.)
Contrast Ratio 700:1 (typ.)
Viewing Angle -80~80(H) ; -70~70(V)
Max Colors 16.2M
Touch Projective-Capacitive Touch
POWER CONSIDERATIONS
Power Input 12V DC in (Optional 9-36V DC)
SOFTWARE SUPPORT
Watchdog SDK
MECHANICAL SPECIFICATION
Cooling System Fanless design
Mounting VESA Mount(75x75mm), Panel Mount
Dimension (W x H x D) 296.2 x 226.7 x 45.5 (mm)
ENVIRONMENT CONSIDERATIONS
Operating Temperature -15 deg. C to 55 deg. C
Operating Humidity 10% to 95% (non-condensing)
IP Rating FrontIP65
Shock Operating 40g for 11ms
Vibration Operating 1.48/1.98/2.24 g rms for XYZ/ 5-500Hz
OPERATING SYSTEM
Operating System Windows 10 IoT Enterprise
