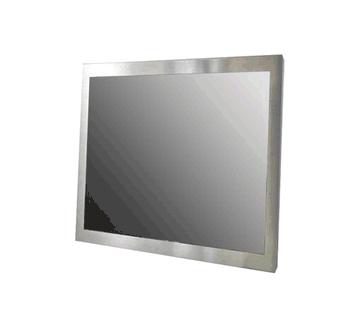

Rugged Completely Sealed Full IP66/NEMA4X Stainless Steel Chassis/Surface Mount, 12.1" LCD monitor , 1024 x 768, 1000 nits, with Glass, VGA and DVI input with Projective Capacitive Touch (1-2mm) USB Controller (Model: CCH1210HB-SIP-PCT)

Rugged Completely Sealed Full IP66/NEMA4X Stainless Steel Chassis/Surface Mount, 12.1"  LCD monitor , 1024 x 768, 1000 nits, with Glass, VGA and DVI input with Projective Capacitive Touch (1-2mm) USB Controller (Model: CCH1210HB-SIP-PCT)

Rugged Completely Sealed Full IP66/NEMA4X Stainless Steel Chassis/Surface Mount, 12.1" LCD monitor , 1024 x 768, 1000 nits, with Glass, VGA and DVI input with Projective Capacitive Touch (1-2mm) USB Controller (Model: CCH1210HB-SIP-PCT)

Main Feature

    • High Contrast color TFT LCD Monitor support resolution up to (1024 x 768)
    • Widely used in chemical industry, food industry, medical devices, appliances etc. with good corrosion resistance
CCH1210HB-SIP-PCT
  • Specifications
  • Download
  • Contact Sales
ViewableSize Image 12.1"
ActiveDisplay Area(mm) 245.76 (H) x 184.32(V)
PixelPitch(mm) -
Numberof Pixels 1024x768
ContrastRatio 700:1 (typ.)
DisplayColor 262K (6 bits/color)
Brightness(cd/m2 ) 1000 (typ.)
ViewingAngle(CR>=10) -80~80 (H); -70~70(V)
Synchronization Range  Horizontal/Vertical 31.5~46.9KHz /60~75Hz
Recommended Resolution 1024x768@60Hz, 75Hz
Signal Connector D-Sub 15pin
I/O 3 pin Power cable(IP65 connector);
10 pin VGA cable (IP65 connector);
DVI (IP65 connectors);
USB cable for Touch (IP65 connector)
Optional for RS232 for touch (IP65 connector)
Power Source 12V DC in, withExternal AC to DC Adapter (100~240 VC)
Power Consumption 15W typical, normaloperation
Power Management VESA DPMS Compliant
Plug & Play VESA DDC 1/2B
Optional TouchScreen Resistive and PCAPTouch
Optional video Yes
Optional Optical bonding For MoisturePrevention
  CNS JIS ASTM AISI DIM
Stainless Material 304 SUS304 S30400 304 1.4301
