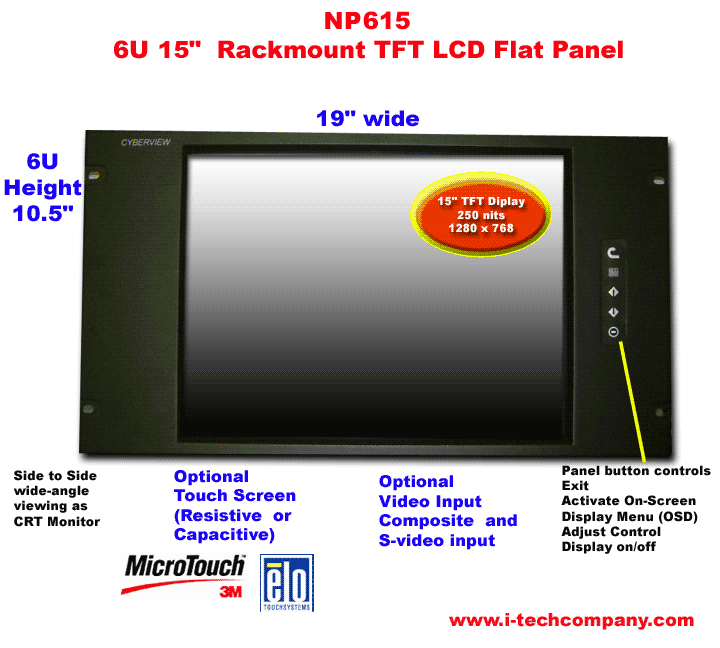

  • Front View
  • Rear View
  • Back Top View
  • Side View
  • Input
  • Accessories
  • Dimension
  • Construction

Rack LCD 6U 15" Rackmount LCD Flat Panel Monitor optional Touchscreen (Model: NP615)

NP615
  • Overview
  • Specifications
  • Download
Product Discontinues. Contact us at Info@iTechLCD.com for replace items.

Features

  • 6U 15"
  • Styled 6mm cast aluminum front panel
  • Lower power consumption
  • Optional IP65/ NEMA sealed front 2mm protective glass for LCD
  • All mounting hardware included
  • 12, 24, 48-Volt DC power supply options
NP615: 6U Rackmount 15" TFT LCC Flat Panel Monitor
Monitor Power Supply
  • Panel: 15" LCD panel
  • Display type: TFT/ LCD active matrix color
  • Resolutions: 1028 x 768
  • Response time: Tr=5ms/ Tf=20ms
  • Contrast ratio: 350 : 1 typical
  • Brightness: 250 cd/m2 typical
  • Pixel pitch: 0.297mm (H) x 0.297mm (W)
  • Panel color: 16.7 million display colors
  • Viewing angle: 130o (Horiz.)/ 110o (Vert.)
  • Storage temp.: -25oC to 60oC
  • Operating temp.: 0oC to 50oC
  • MTBF: 35,000 hours
  • Remote adapter: 110V - 220V AC input  12V 5A Output
  • Adapter Size: 4.3"(L) x 2.4"(W) x 1.2"(H) inch, < 10.8(L) x 6.1 (W) x 3(H)cm>
  • Cable length from mains plug to adapter:  6ft  (182cm)
  • Cable length from adapter to unit: 6ft (180cm)
  • Safety approval: CE
  • Mains plug options available
  • Optional -48V DC input
Dimension
  • Product dimension (W x H x D) 18.9" x 10.5" x 2inch (18.9x 10.5x 2cm)
  • Packing dimension- (W x H x D)  22.4" x 6.5" x 16.5" inch (57 x 16.5 x 42cm)
Net/Gross Weight
  • 11lbs/15.4lbs (5kg / 7kg)
Diagram
